| Manufacturer Part Number: | 1N4004RL |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Standard 400V 1A Through Hole DO-41 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1N4004RL Datasheet |
| Internal Part Number | 898-1N4004RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 19/Jun/2009 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 400V | |
| Current - Average Rectified (Io) | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 1.1V @ 1A | |
| Speed | Standard Recovery >500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 10µA @ 400V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |

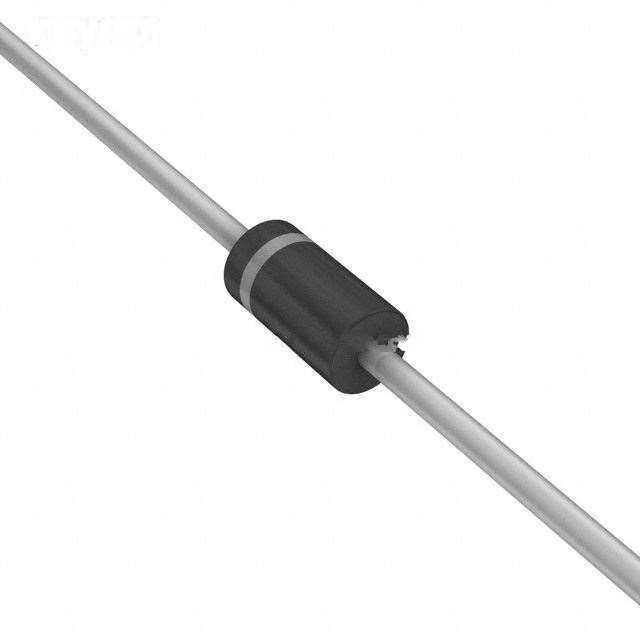

| Package / Case | DO-204AL, DO-41, Axial | |
| Supplier Device Package | DO-41 | |
| Operating Temperature - Junction | -65°C ~ 175°C | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1N4004RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1N4004RL is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of 1N4004RL is new and unused, you can buy 1N4004RL ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N4004RL.
