| Manufacturer Part Number: | 1N4148WXL-TP |
|---|---|
| Manufacturer: | Micro Commercial Co |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SW 100V 150MA SOD323FL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1N4148WXL-TP Datasheet |
| Internal Part Number | 898-1N4148WXL-TP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Diode Handling and Mounting | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Micro Commercial Co | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 100V | |
| Current - Average Rectified (Io) | 150mA | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 50mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 5µA @ 75V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Surface Mount | |

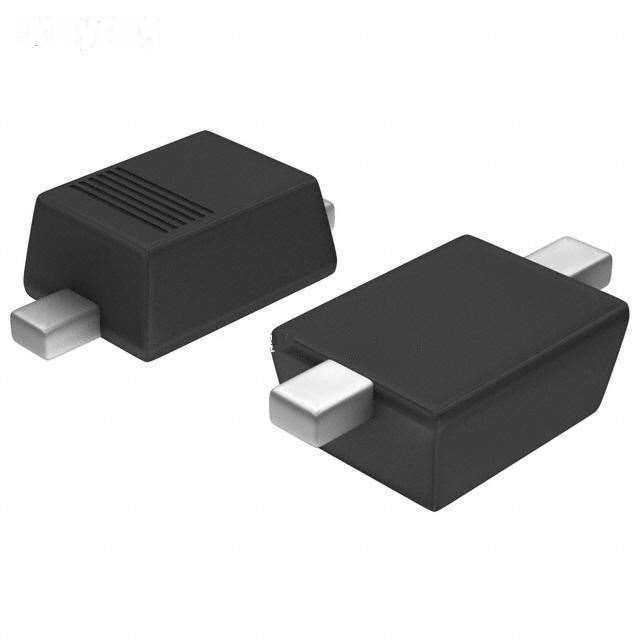

| Package / Case | SC-90, SOD-323F | |
| Supplier Device Package | SOD-323FL | |
| Operating Temperature - Junction | -55°C ~ 150°C | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1N4148WXL-TP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1N4148WXL-TP is in stock for immediate shipping now. We are the distributor of Micro Commercial Co all series components. The condition of 1N4148WXL-TP is new and unused, you can buy 1N4148WXL-TP Micro Commercial Co with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N4148WXL-TP.
