| Manufacturer Part Number: | 1N4746ATR |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 24010 Pieces |
| Unit Price: | Quote by Email |

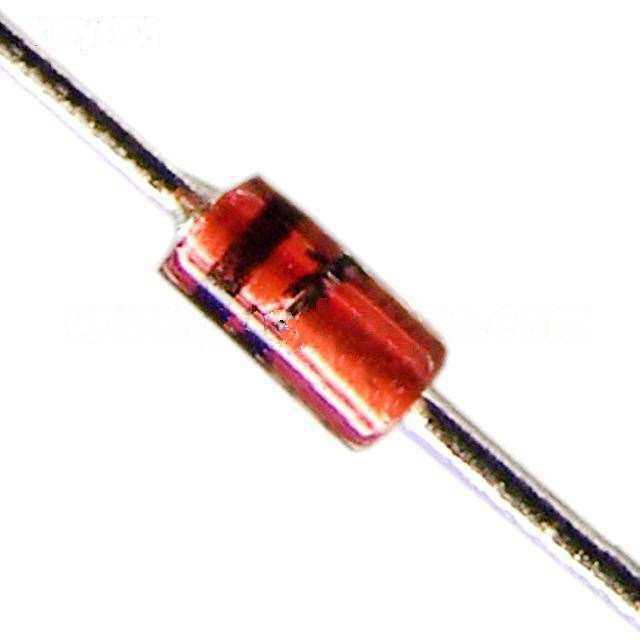

| Description: | Zener Diode 18V 1W ±5% Through Hole DO-41 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1N4746ATR Datasheet |
| Internal Part Number | 898-1N4746ATR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Zener Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Voltage - Zener (Nom) (Vz) | 18V | |
| Tolerance | ±5% | |
| Power - Max | 1W | |
| Impedance (Max) (Zzt) | 20 Ohm | |
| Current - Reverse Leakage @ Vr | 5µA @ 13.7V | |
| Voltage - Forward (Vf) (Max) @ If | - | |
| Operating Temperature | -65°C ~ 200°C | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Supplier Device Package | DO-41 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1N4746ATR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1N4746ATR is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of 1N4746ATR is new and unused, you can buy 1N4746ATR Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N4746ATR.
