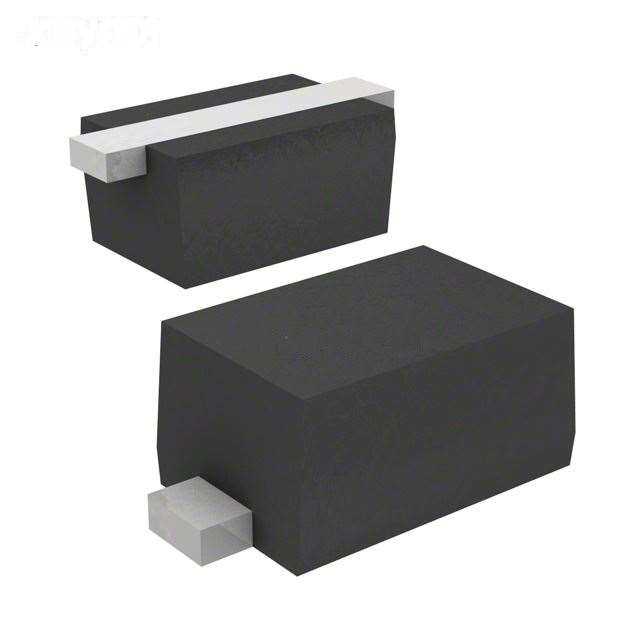

.jpg)
| Manufacturer Part Number: | 1SS424(TPL3,F) |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 20V 200MA SSM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1SS424(TPL3,F) Datasheet |
| Internal Part Number | 898-1SS424(TPL3,F) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Schottky Barrier Diodes | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 20V | |
| Current - Average Rectified (Io) | 200mA | |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 200mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 50µA @ 20V | |
| Capacitance @ Vr, F | 20pF @ 0V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-75, SOT-416 | |
| Supplier Device Package | SSM | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1SS424(TPL3,F) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1SS424(TPL3,F) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of 1SS424(TPL3,F) is new and unused, you can buy 1SS424(TPL3,F) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1SS424(TPL3,F).
