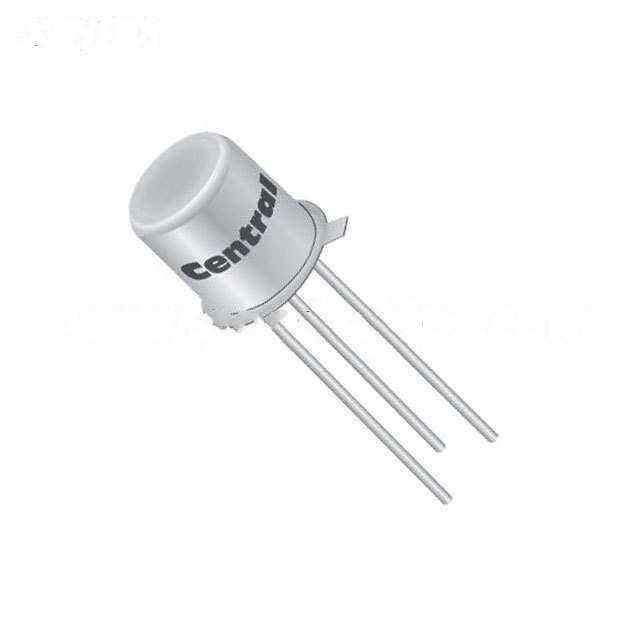

| Manufacturer Part Number: | 2N5116 |
|---|---|
| Manufacturer: | Central Semiconductor Corp |
| Product Category: | Transistors - JFETs |
| Available Quantity: | 9790 Pieces |
| Unit Price: | Quote by Email |
| Description: | JFET P-Channel 30V 5mA @ 15V 500mW Through Hole TO-18 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2N5116 Datasheet |
| Internal Part Number | 898-2N5116 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Declaration of Compliance | |
| Online Catalog | P-Channel JFETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - JFETs | |
| Manufacturer | Central Semiconductor Corp | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | P-Channel | |
| Voltage - Breakdown (V(BR)GSS) | 30V | |
| Drain to Source Voltage (Vdss) | - | |
| Current - Drain (Idss) @ Vds (Vgs=0) | 5mA @ 15V | |
| Current Drain (Id) - Max | - | |
| Voltage - Cutoff (VGS off) @ Id | 1V @ 1nA | |
| Input Capacitance (Ciss) @ Vds | 25pF @ 15V | |
| Resistance - RDS(On) | 150 Ohm | |
| Mounting Type | Through Hole | |
| Package / Case | TO-206AA, TO-18-3 Metal Can | |
| Supplier Device Package | TO-18 | |
| Power - Max | 500mW | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2N5116 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2N5116 is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of 2N5116 is new and unused, you can buy 2N5116 Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2N5116.
