| Manufacturer Part Number: | 2N6901 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 100V 1.69A TO-205AF |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2N6901 Datasheet |
| Internal Part Number | 898-2N6901 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 12/Jun/2015 Last Time Buy Revision 08/Jul/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 1.69A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.6 Ohm @ 1.07A, 5V | |
| Vgs(th) (Max) @ Id | 2V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 1nC @ 5V | |
| Input Capacitance (Ciss) @ Vds | - | |
| Power - Max | 8.33W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

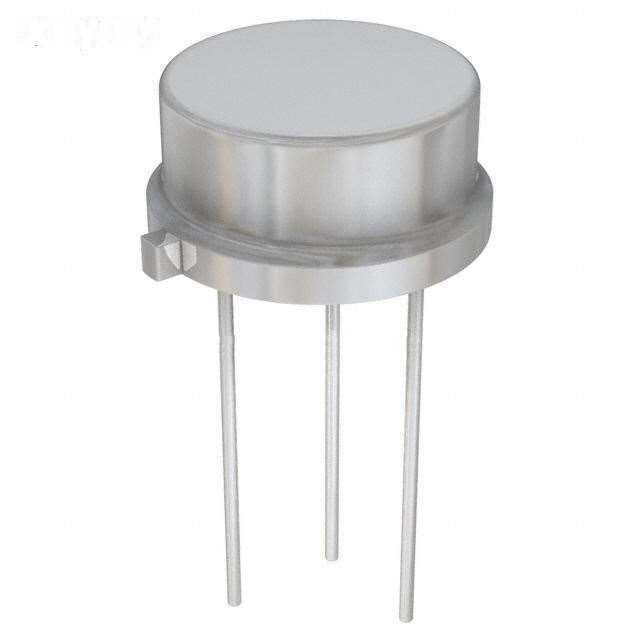

| Package / Case | TO-205AF Metal Can | |
| Supplier Device Package | TO-39 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2N6901 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2N6901 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 2N6901 is new and unused, you can buy 2N6901 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2N6901.
