Manufacturer Part Number: | 2SD1766T100R |
---|---|
Manufacturer: | Rohm Semiconductor |
Product Category: | Transistors - Bipolar (BJT) - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TRANS NPN 32V 2A SOT-89 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2SD1766T100R Datasheet |
Internal Part Number | 898-2SD1766T100R | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - Single | |
Manufacturer | Rohm Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Not For New Designs | |
Transistor Type | NPN | |
Current - Collector (Ic) (Max) | 2A | |
Voltage - Collector Emitter Breakdown (Max) | 32V | |
Vce Saturation (Max) @ Ib, Ic | 800mV @ 200mA, 2A | |
Current - Collector Cutoff (Max) | 1µA (ICBO) | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 500mA, 3V | |
Power - Max | 2W | |
Frequency - Transition | 100MHz | |
Mounting Type | Surface Mount | |

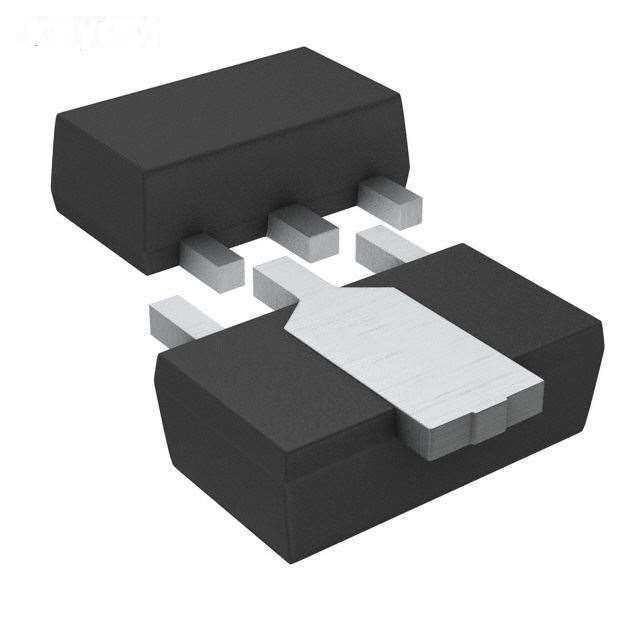

Package / Case | TO-243AA | |
Supplier Device Package | MPT3 | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2SD1766T100R | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2SD1766T100R is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of 2SD1766T100R is new and unused, you can buy 2SD1766T100R Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SD1766T100R.
