| Manufacturer Part Number: | 2SD1816T-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TRANS NPN 100V 4A TP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2SD1816T-H Datasheet |
| Internal Part Number | 898-2SD1816T-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 4A | |
| Voltage - Collector Emitter Breakdown (Max) | 100V | |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 200mA, 2A | |
| Current - Collector Cutoff (Max) | 1µA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 5V | |
| Power - Max | 1W | |
| Frequency - Transition | 180MHz | |
| Mounting Type | Through Hole | |

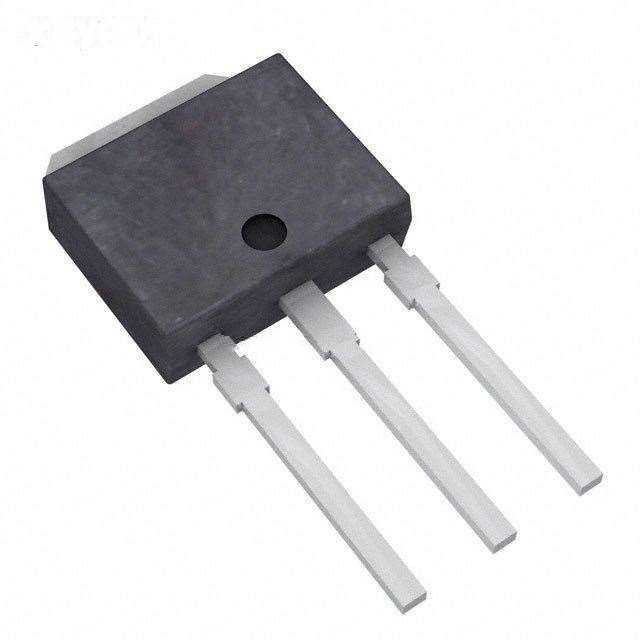

| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA | |
| Supplier Device Package | TP | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2SD1816T-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2SD1816T-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of 2SD1816T-H is new and unused, you can buy 2SD1816T-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2SD1816T-H.
