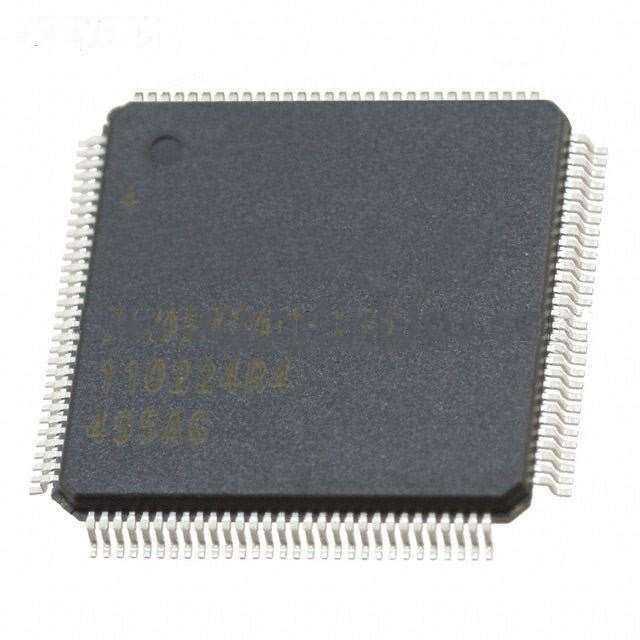

| Manufacturer Part Number: | 71M6534H-IGT/F |
|---|---|
| Manufacturer: | Maxim Integrated |
| Product Category: | PMIC - Energy Metering |
| Available Quantity: | 9210 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC ENERY METER 3PH 256K 120-LQFP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 71M6534H-IGT/F Datasheet |
| Internal Part Number | 898-71M6534H-IGT/F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Compiling Meter Code with New Computation Engine 71M65xx ADM51 ICE Safety Notice 71M6531/71M6533/71M6534 Energy Meter IC Family Software User's Guide 71M65XX with VITROPERM CTs The Real-Time Clocks of the 71M65XX Metering ICs Meter Design for Power Failure Events Teridian 71M65XX Using DC-Tolerant CTs by J&D Electronics RTC Compensation Operating the 71M653X with External Serial SRAM Code for Bank-Switching with the 653X-Series Migrating from the 71M6513 to the 71M6533/6534 A Low-Current Power Supply for the 71M65XX Metering ICs Field Download of Code to the 71M653x ICs The SPI Interfaces of the 71M65xx Return to Mission Mode under Battery Power External Filters for the Analog Inputs of Metering ICs Programming Maxim Integrated Meter ICs | |
| Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
| PCN Part Status Change | Silergy Transfer 2/Mar/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Energy Metering | |
| Manufacturer | Maxim Integrated | |
| Series | Single Converter Technology® | |
| Packaging | Tray | |
| Part Status | Discontinued | |
| Input Impedance | 40 kOhm ~ 90 kOhm | |
| Measurement Error | 0.1% | |
| Voltage - I/O High | 2V | |
| Voltage - I/O Low | 0.8V | |
| Current - Supply | - | |
| Voltage - Supply | 3 V ~ 3.6 V | |
| Meter Type | 3 Phase, Neutral Phase | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 120-LQFP | |
| Supplier Device Package | 120-LQFP (14x14) | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 71M6534H-IGT/F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
71M6534H-IGT/F is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of 71M6534H-IGT/F is new and unused, you can buy 71M6534H-IGT/F Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 71M6534H-IGT/F.
