| Manufacturer Part Number: | 74LCX04BQX |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Inverter IC 6 Channel 14-DQFN (3x2.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 74LCX04BQX Datasheet |
| Internal Part Number | 898-74LCX04BQX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 74LCX | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Fairchild Semiconductor | |
| Series | 74LCX | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Logic Type | Inverter | |
| Number of Circuits | 6 | |
| Number of Inputs | 6 | |
| Features | - | |
| Voltage - Supply | 2 V ~ 3.6 V | |
| Current - Quiescent (Max) | 10µA | |
| Current - Output High, Low | 24mA, 24mA | |
| Logic Level - Low | 0.7 V ~ 0.8 V | |
| Logic Level - High | 1.7 V ~ 2 V | |
| Max Propagation Delay @ V, Max CL | 5.2ns @ 3.3V, 50pF | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

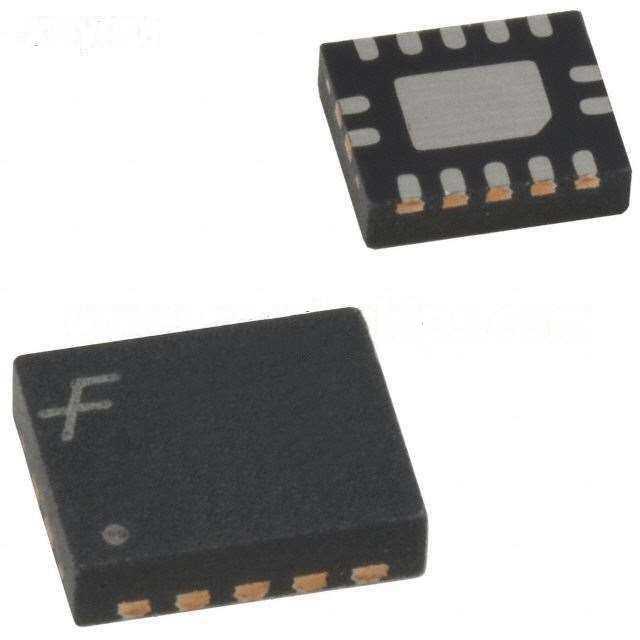

| Supplier Device Package | 14-DQFN (3x2.5) | |
| Package / Case | 14-WFQFN Exposed Pad | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 74LCX04BQX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
74LCX04BQX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of 74LCX04BQX is new and unused, you can buy 74LCX04BQX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74LCX04BQX.
