| Manufacturer Part Number: | 74LVC1G00FW4-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Logic - Gates and Inverters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | NAND Gate IC 1 Channel DFN1010 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 74LVC1G00FW4-7 Datasheet |
| Internal Part Number | 898-74LVC1G00FW4-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | Low Voltage CMOS 74LVCxx 74LVC1G and 74AUP1G Families | |
| Online Catalog | 74LVC | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters | |
| Manufacturer | Diodes Incorporated | |
| Series | 74LVC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Logic Type | NAND Gate | |
| Number of Circuits | 1 | |
| Number of Inputs | 2 | |
| Features | - | |
| Voltage - Supply | 1.65 V ~ 5.5 V | |
| Current - Quiescent (Max) | 200µA | |
| Current - Output High, Low | 32mA, 32mA | |
| Logic Level - Low | 0.7 V ~ 0.8 V | |
| Logic Level - High | 1.7 V ~ 2 V | |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 5V, 50pF | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

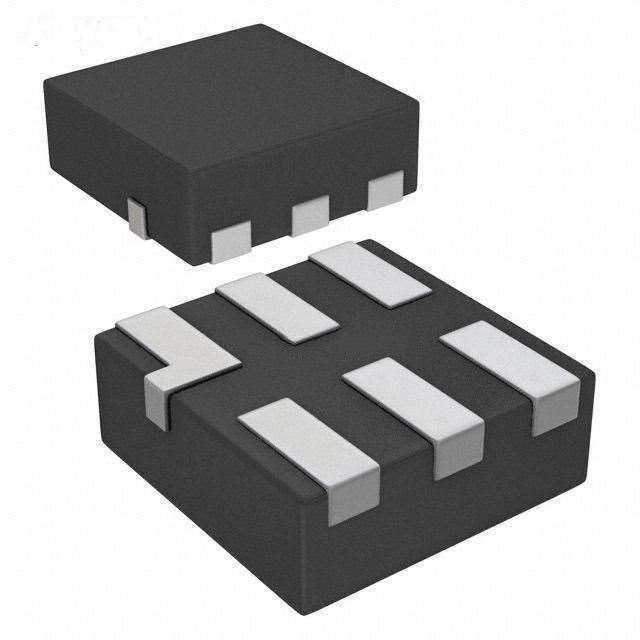

| Supplier Device Package | DFN1010 | |
| Package / Case | 6-XFDFN | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 74LVC1G00FW4-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
74LVC1G00FW4-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of 74LVC1G00FW4-7 is new and unused, you can buy 74LVC1G00FW4-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 74LVC1G00FW4-7.
