| Manufacturer Part Number: | A3998SETTR-T |
|---|---|
| Manufacturer: | Allegro MicroSystems, LLC |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Bipolar Motor Driver DMOS Serial 32-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | A3998SETTR-T Datasheet |
| Internal Part Number | 898-A3998SETTR-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | A4936,A3998 ET 5x5 QFN 08/Oct/2013 | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Allegro MicroSystems, LLC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Motor Type - Stepper | Bipolar | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (4) | |
| Interface | Serial | |
| Technology | DMOS | |
| Step Resolution | 1, 1/2, 1/4, 1/8 | |
| Applications | General Purpose | |
| Current - Output | 1.5A | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Voltage - Load | 9 V ~ 50 V | |
| Operating Temperature | -20°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

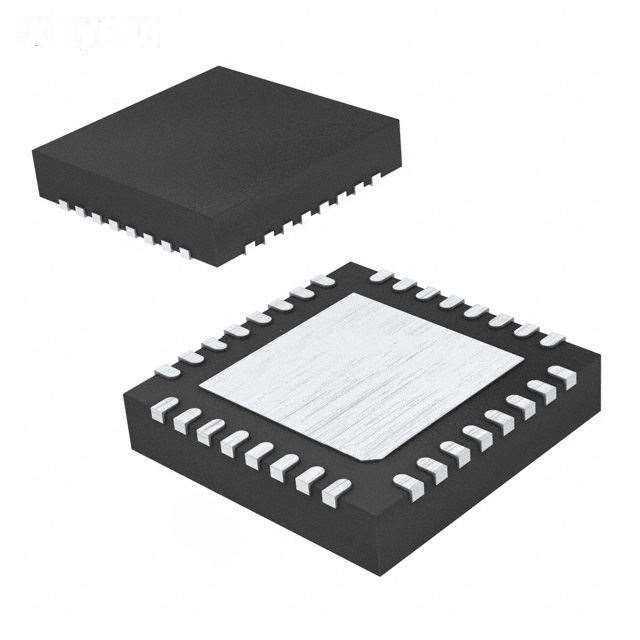

| Package / Case | 32-VFQFN Exposed Pad | |
| Supplier Device Package | 32-QFN (5x5) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | A3998SETTR-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
A3998SETTR-T is in stock for immediate shipping now. We are the distributor of Allegro MicroSystems, LLC all series components. The condition of A3998SETTR-T is new and unused, you can buy A3998SETTR-T Allegro MicroSystems, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A3998SETTR-T.
