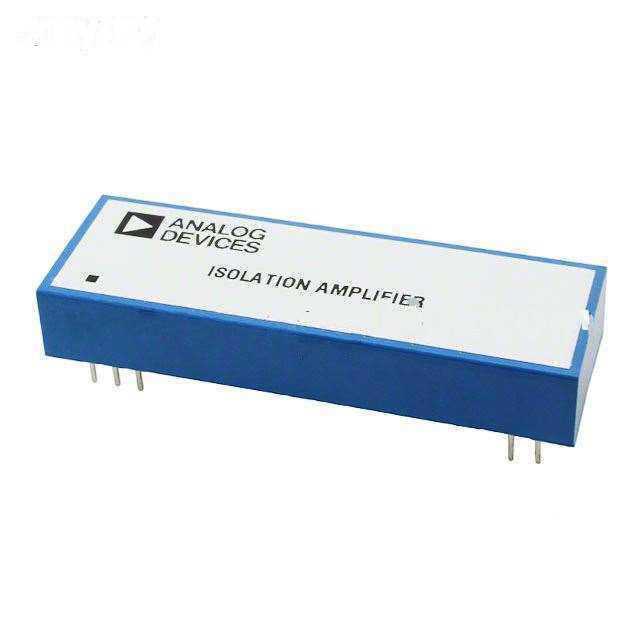

Manufacturer Part Number: | AD204KN |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 9056 Pieces |
Unit Price: | Quote by Email |
Description: | Isolation Amplifier 4 Circuit 10-PDIP |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AD204KN Datasheet |
Internal Part Number | 898-AD204KN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Common Photodiode Op-Amp Circuit Problems and Solutions Indirect Current Feedback Instrumentation Amplifier Applications Guide | |
PCN Design/Specification | Hard Cap Encapsulation 25/Jul/2013 | |
PCN Packaging | Shipping Tube Rev 22/Jul/2015 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Isolation | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Amplifier Type | Isolation | |
Number of Circuits | 4 | |
Output Type | - | |
Slew Rate | - | |
Gain Bandwidth Product | 5kHz | |
-3db Bandwidth | - | |
Current - Input Bias | 30pA | |
Voltage - Input Offset | 5mV | |
Current - Supply | - | |
Current - Output / Channel | 2mA | |
Voltage - Supply, Single/Dual (±) | - | |
Operating Temperature | 0°C ~ 70°C | |
Mounting Type | Through Hole | |
Package / Case | 38-DIP (0.600", 15.24mm), 11 Leads | |
Supplier Device Package | 10-PDIP | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AD204KN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AD204KN is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD204KN is new and unused, you can buy AD204KN Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD204KN.
