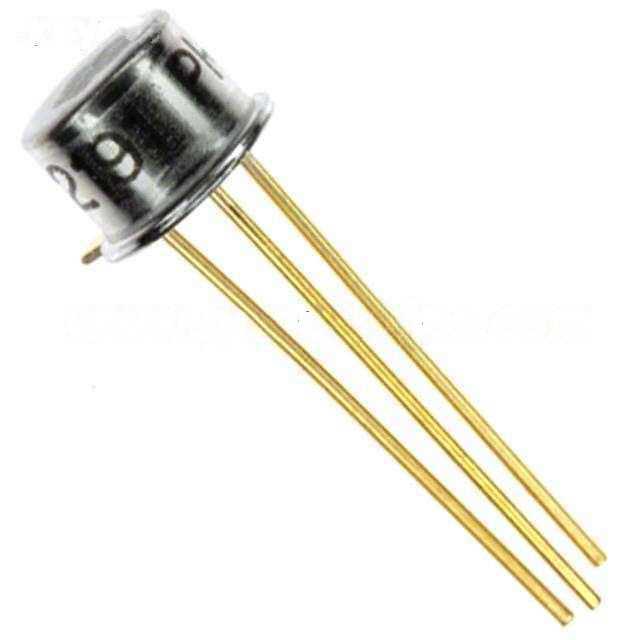

| Manufacturer Part Number: | AD580LH |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | PMIC - Voltage Reference |
| Available Quantity: | 9477 Pieces |
| Unit Price: | Quote by Email |
| Description: | Series Voltage Reference IC ±0.4% 10mA TO-205AA, TO-5-3 Metal Can |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD580LH Datasheet |
| Internal Part Number | 898-AD580LH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Series, Fixed - Analog Devices Inc | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Reference | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Reference Type | Series | |
| Output Type | Fixed | |
| Voltage - Output (Min/Fixed) | 2.5V | |
| Voltage - Output (Max) | - | |
| Current - Output | 10mA | |
| Tolerance | ±0.4% | |
| Temperature Coefficient | 25ppm/°C | |
| Noise - 0.1Hz to 10Hz | 8µVp-p | |
| Noise - 10Hz to 10kHz | - | |
| Voltage - Input | 4.5 V ~ 30 V | |
| Current - Supply | 1.5mA | |
| Current - Cathode | - | |
| Operating Temperature | 0°C ~ 70°C (TA) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-205AA, TO-5-3 Metal Can | |
| Supplier Device Package | TO-52-3 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD580LH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD580LH is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD580LH is new and unused, you can buy AD580LH Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD580LH.
