| Manufacturer Part Number: | AD7683ACPZRL7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 16 Bit Analog to Digital Converter 1 Input 1 SAR 8-LFCSP-WD (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD7683ACPZRL7 Datasheet |
| Internal Part Number | 898-AD7683ACPZRL7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Pulse Oximeter Solution | |
| PCN Assembly/Origin | Alternate Assembly Site 03/Apr/2014 Qualification Assembly Site 01/May/2014 Assembly Relocation 15/Feb/2016 Assembly Relocation REV-A 16/May/2016 Assembly Relocation REV-B 1/Aug/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | 16 Bit | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog to Digital Converters (ADC) | |
| Manufacturer | Analog Devices Inc. | |
| Series | PulSAR® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 100k | |
| Number of Inputs | 1 | |
| Input Type | Pseudo-Differential | |
| Data Interface | SPI, DSP | |
| Configuration | S/H-ADC | |
| Ratio - S/H:ADC | 1:1 | |
| Number of A/D Converters | 1 | |
| Architecture | SAR | |
| Reference Type | External | |
| Voltage - Supply, Analog | 2.7 V ~ 5.5 V | |
| Voltage - Supply, Digital | 2.7 V ~ 5.5 V | |
| Features | - | |
| Operating Temperature | -40°C ~ 85°C | |

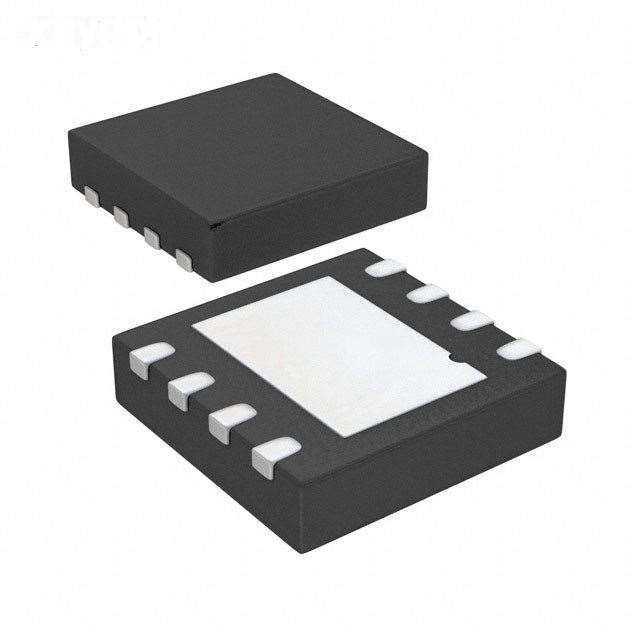

| Package / Case | 8-WDFN Exposed Pad, CSP | |
| Supplier Device Package | 8-LFCSP-WD (3x3) | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD7683ACPZRL7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD7683ACPZRL7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD7683ACPZRL7 is new and unused, you can buy AD7683ACPZRL7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD7683ACPZRL7.
