| Manufacturer Part Number: | AD9272BSVZRL-80 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Data Acquisition - ADCs/DACs - Special Purpose |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AAF, ADC, Crosspoint Switch, LNA, VGA 12 bit 80M Serial 100-TQFP-EP (14x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9272BSVZRL-80 Datasheet |
| Internal Part Number | 898-AD9272BSVZRL-80 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Solution for Ultrasonic Non-Destructive Testing Medical Ultrasound Solutions | |
| PCN Design/Specification | Assembly Site/Qual Data Rev E 15/Mar/2016 | |
| PCN Assembly/Origin | Assembly Site Transfer 10/Dec/2014 Assembly Site Revision A 22/Jun/2015 Assembly Site Revision B 03/Aug/2015 Assembly Site Chg 04/Jan/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - ADCs/DACs - Special Purpose | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | AAF, ADC, Crosspoint Switch, LNA, VGA | |
| Resolution (Bits) | 12 b | |
| Sampling Rate (Per Second) | 80M | |
| Data Interface | Serial | |
| Voltage Supply Source | Analog and Digital | |
| Voltage - Supply | 1.8V, 3V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

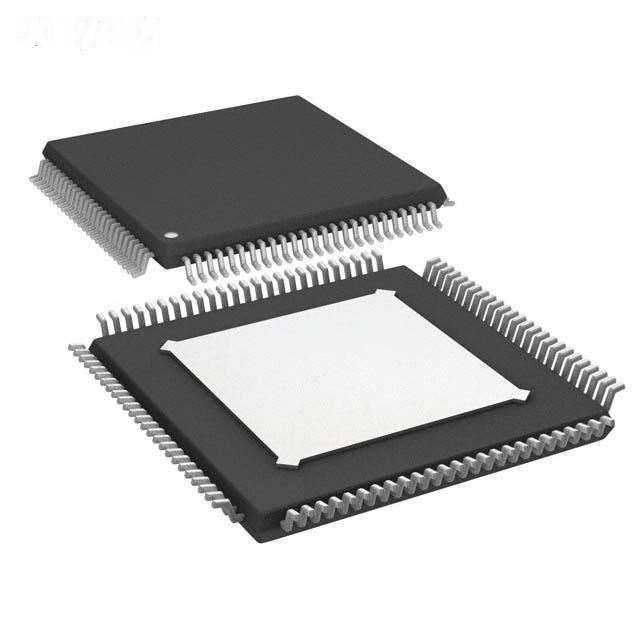

| Package / Case | 100-TQFP Exposed Pad | |
| Supplier Device Package | 100-TQFP-EP (14x14) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9272BSVZRL-80 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9272BSVZRL-80 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9272BSVZRL-80 is new and unused, you can buy AD9272BSVZRL-80 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9272BSVZRL-80.
