| Manufacturer Part Number: | ADP3808JCPZ-RL |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Battery Chargers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC CTRLR LI-ION CHARGER 24LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP3808JCPZ-RL Datasheet |
| Internal Part Number | 898-ADP3808JCPZ-RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | PTC Devices 25/Aug/2008 | |
| PCN Part Number | ADI to ON Semi 19/Dec/2007 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Chargers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Battery Chemistry | Lithium-Ion | |
| Number of Cells | 3 ~ 4 | |
| Current - Charging | Constant - Programmable | |
| Programmable Features | - | |
| Fault Protection | - | |
| Charge Current - Max | - | |
| Battery Pack Voltage | 18V | |
| Voltage - Supply (Max) | 22V | |
| Interface | - | |
| Operating Temperature | 0°C ~ 100°C (TA) | |

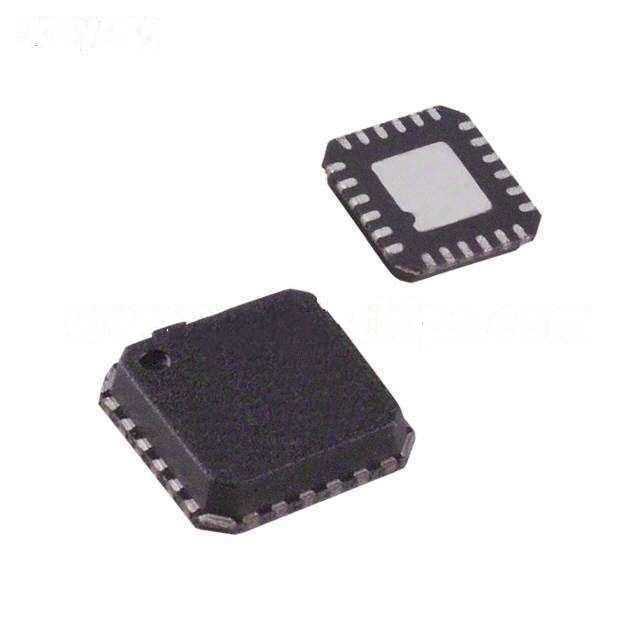

| Package / Case | 24-VFQFN Exposed Pad, CSP | |
| Supplier Device Package | 24-LFCSP-VQ (4x4) | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP3808JCPZ-RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP3808JCPZ-RL is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ADP3808JCPZ-RL is new and unused, you can buy ADP3808JCPZ-RL ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP3808JCPZ-RL.
