| Manufacturer Part Number: | ADS1257IRGWT |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24 Bit Analog to Digital Converter 2, 3 Input 1 Sigma-Delta 20-VQFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADS1257IRGWT Datasheet |
| Internal Part Number | 898-ADS1257IRGWT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | ADC Grounding Practices Principles of Data Acquisition & Conversion Data Converter Drift | |
| Featured Product | ADS1257 24-bit Industrial ADC | |
| Manufacturer Product Page | ADS1257IRGWT Specifications | |
| Online Catalog | 24 Bit | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog to Digital Converters (ADC) | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Bits | 24 | |
| Sampling Rate (Per Second) | 30k | |
| Number of Inputs | 2, 3 | |
| Input Type | Differential, Single Ended | |
| Data Interface | SPI | |
| Configuration | MUX-PGA-ADC | |
| Ratio - S/H:ADC | - | |
| Number of A/D Converters | 1 | |
| Architecture | Sigma-Delta | |
| Reference Type | External | |
| Voltage - Supply, Analog | 5V | |
| Voltage - Supply, Digital | 1.8 V ~ 3.6 V | |
| Features | PGA | |
| Operating Temperature | -40°C ~ 105°C | |

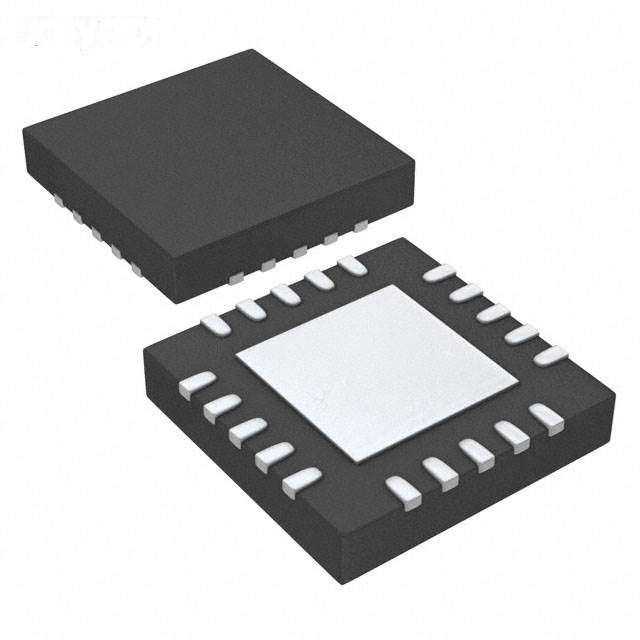

| Package / Case | 20-VQFN Exposed Pad | |
| Supplier Device Package | 20-VQFN (5x5) | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADS1257IRGWT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADS1257IRGWT is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of ADS1257IRGWT is new and unused, you can buy ADS1257IRGWT T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADS1257IRGWT.
