| Manufacturer Part Number: | ADS5424IPGP |
|---|---|
| Manufacturer: | T-I |
| Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
| Available Quantity: | 9224 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14 Bit Analog to Digital Converter 1 Input 1 Pipelined 52-HTQFP (10x10) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADS5424IPGP Datasheet |
| Internal Part Number | 898-ADS5424IPGP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly/Test Site Transfer 29/Apr/2014 Qualification Mold Compound 30/Sep/2014 | |
| Online Catalog | 14 Bit | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog to Digital Converters (ADC) | |
| Manufacturer | T I | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Number of Bits | 14 | |
| Sampling Rate (Per Second) | 105M | |
| Number of Inputs | 1 | |
| Input Type | Differential | |
| Data Interface | Parallel | |
| Configuration | S/H-ADC | |
| Ratio - S/H:ADC | 1:1 | |
| Number of A/D Converters | 1 | |
| Architecture | Pipelined | |
| Reference Type | Internal | |
| Voltage - Supply, Analog | 5V | |
| Voltage - Supply, Digital | 5V | |
| Features | - | |
| Operating Temperature | -55°C ~ 125°C | |

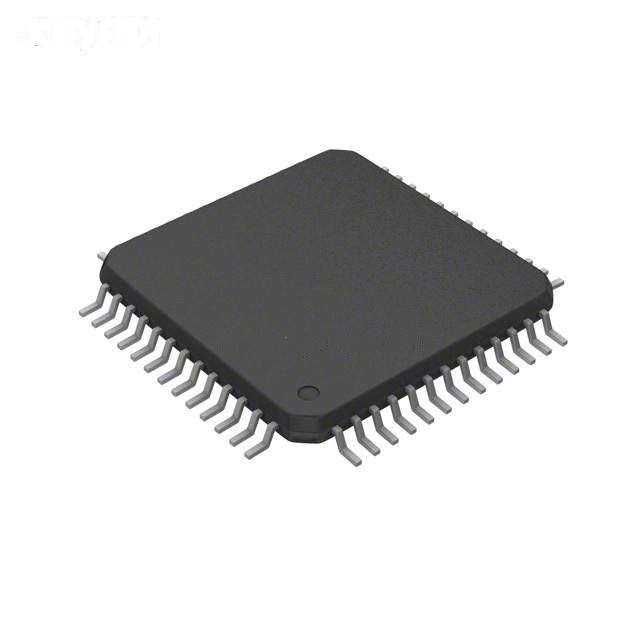

| Package / Case | 52-TQFP Exposed Pad | |
| Supplier Device Package | 52-HTQFP (10x10) | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADS5424IPGP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADS5424IPGP is in stock for immediate shipping now. We are the distributor of T-I all series components. The condition of ADS5424IPGP is new and unused, you can buy ADS5424IPGP T-I with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADS5424IPGP.
