Manufacturer Part Number: | AN44075A-VF |
---|---|
Manufacturer: | Panasonic Electronic Components |
Product Category: | PMIC - Motor Drivers, Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Motor Driver BiCDMOS Parallel 34-HSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AN44075A-VF Datasheet |
Internal Part Number | 898-AN44075A-VF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Wearables Technology Components | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Motor Drivers, Controllers | |
Manufacturer | Panasonic Electronic Components | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Motor Type - Stepper | - | |
Motor Type - AC, DC | Brushed DC | |
Function | Driver - Fully Integrated, Control and Power Stage | |
Output Configuration | Half Bridge (2) | |
Interface | Parallel | |
Technology | BiCDMOS | |
Step Resolution | - | |
Applications | General Purpose | |
Current - Output | 3A | |
Voltage - Supply | 10 V ~ 35 V | |
Voltage - Load | 10 V ~ 35 V | |
Operating Temperature | -20°C ~ 70°C (TA) | |
Mounting Type | Surface Mount | |

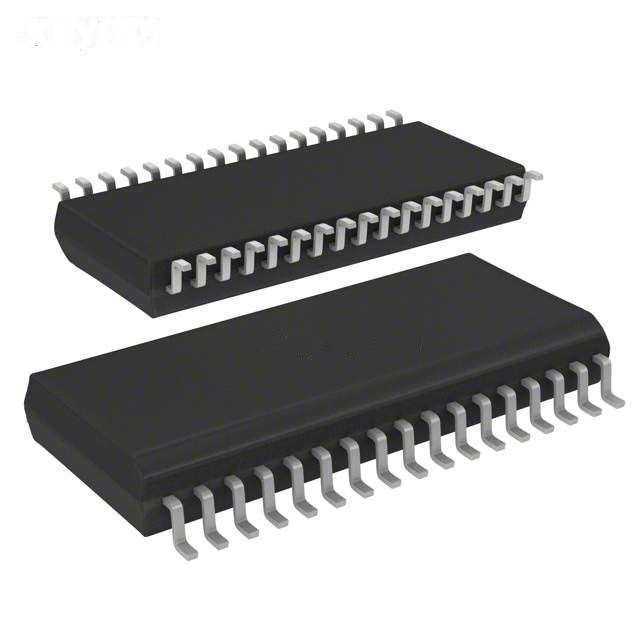

Package / Case | 34-TSOP (0.240", 6.10mm Width) Exposed Pad | |
Supplier Device Package | 34-HSOP | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AN44075A-VF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AN44075A-VF is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of AN44075A-VF is new and unused, you can buy AN44075A-VF Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AN44075A-VF.
