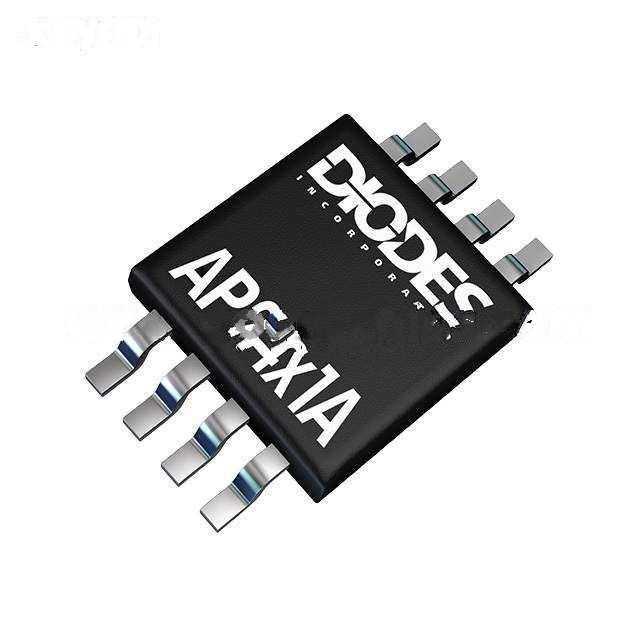

| Manufacturer Part Number: | AP2401AMP-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 11510 Pieces |
| Unit Price: | Quote by Email |
| Description: | USB POWER SWITCH 8MSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP2401AMP-13 Datasheet |
| Internal Part Number | 898-AP2401AMP-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AP23x1A/24x1A/25x1A USB Switches | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Switch Type | USB Switch | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | High Side | |
| Output Type | P-Channel | |
| Interface | On/Off | |
| Voltage - Load | 2.7 V ~ 5.5 V | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 2A | |
| Rds On (Typ) | 70 mOhm | |
| Input Type | Non-Inverting | |
| Features | Load Discharge, Slew Rate Controlled, Status Flag | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | |
| Supplier Device Package | 8-MSOP-EP | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP2401AMP-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP2401AMP-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP2401AMP-13 is new and unused, you can buy AP2401AMP-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP2401AMP-13.
