| Manufacturer Part Number: | AP3156FVG-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 6 Output DC DC Regulator Switched Capacitor (Charge Pump) 20mA QFN4040-16 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP3156FVG-7 Datasheet |
| Internal Part Number | 898-AP3156FVG-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | DC DC Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Switched Capacitor (Charge Pump) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 6 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | - | |
| Current - Output / Channel | 20mA | |
| Frequency | 500kHz ~ 2MHz | |
| Dimming | - | |
| Applications | Backlight, Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-UFQFN Exposed Pad | |

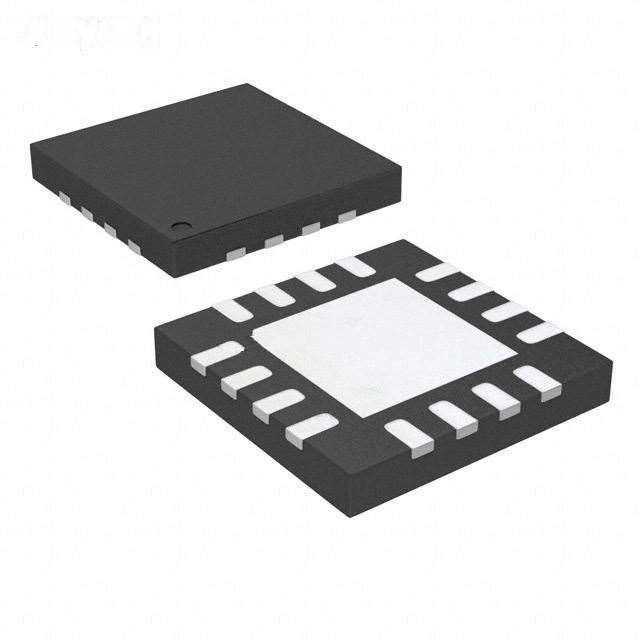

| Supplier Device Package | QFN4040-16 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP3156FVG-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP3156FVG-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP3156FVG-7 is new and unused, you can buy AP3156FVG-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP3156FVG-7.
