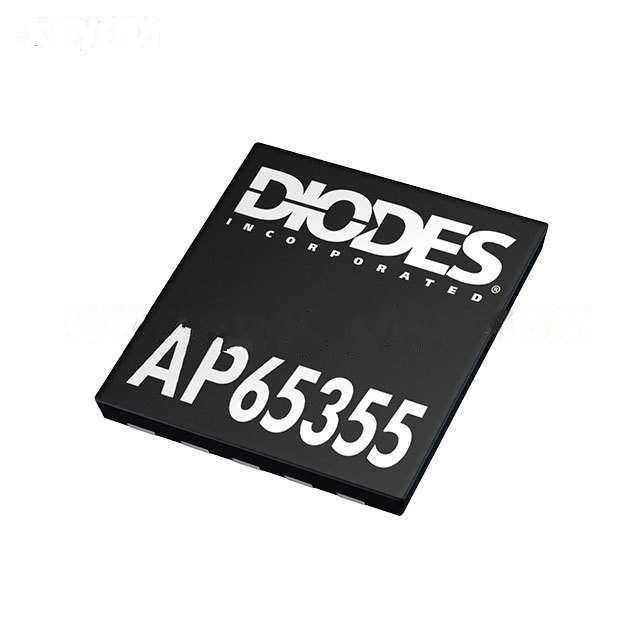

Manufacturer Part Number: | AP65355FN-7 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 14725 Pieces |
Unit Price: | Quote by Email |
Description: | Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 3A 10-UFDFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AP65355FN-7 Datasheet |
Internal Part Number | 898-AP65355FN-7 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AP65455/AP65355 3 A/4 A Buck Converters | |
Online Catalog | Buck (Step-Down) IC | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | Buck | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 18V | |
Voltage - Output (Min/Fixed) | 0.76V | |
Voltage - Output (Max) | 6V | |
Current - Output | 3A | |
Frequency - Switching | 650kHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |
Package / Case | 10-UFDFN Exposed Pad | |
Supplier Device Package | U-DFN3030-10 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AP65355FN-7 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AP65355FN-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP65355FN-7 is new and unused, you can buy AP65355FN-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP65355FN-7.
