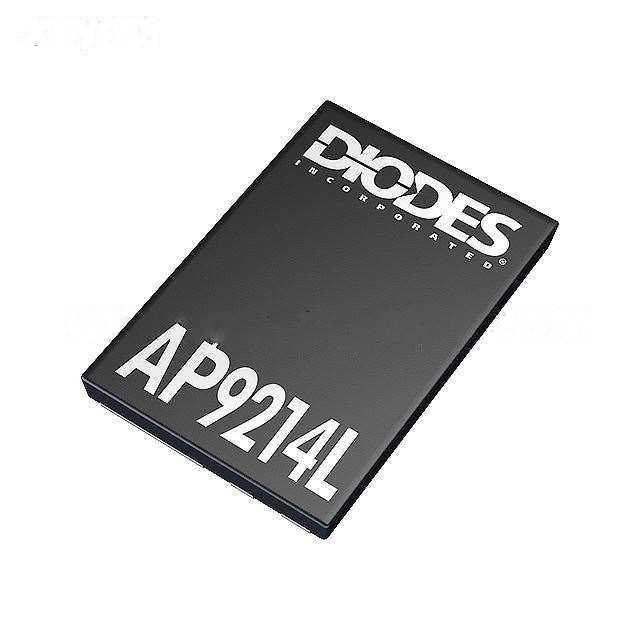

| Manufacturer Part Number: | AP9214L-AH-HSB-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Battery Management |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Battery Battery Protection IC Lithium-Ion/Polymer U-DFN2535-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP9214L-AH-HSB-7 Datasheet |
| Internal Part Number | 898-AP9214L-AH-HSB-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AP9214L Single-Cell Lithium Battery Pack Protection | |
| Online Catalog | Over/Under Voltage Protection | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Battery Management | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Battery Protection | |
| Battery Chemistry | Lithium-Ion/Polymer | |
| Number of Cells | 1 | |
| Fault Protection | Over Current, Over Voltage, Short Circuit | |
| Interface | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | 6-UDFN Exposed Pad | |
| Supplier Device Package | U-DFN2535-6 | |
| Drawing Number | 31; U-DFN2535-6 Type B; ; 6 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP9214L-AH-HSB-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP9214L-AH-HSB-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP9214L-AH-HSB-7 is new and unused, you can buy AP9214L-AH-HSB-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP9214L-AH-HSB-7.
