| Manufacturer Part Number: | APT30DQ100KG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9020 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 1KV 30A TO220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APT30DQ100KG Datasheet |
| Internal Part Number | 898-APT30DQ100KG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Diode Overview | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) | |
| Current - Average Rectified (Io) | 30A | |
| Voltage - Forward (Vf) (Max) @ If | 3V @ 30A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 295ns | |
| Current - Reverse Leakage @ Vr | 100µA @ 1000V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |

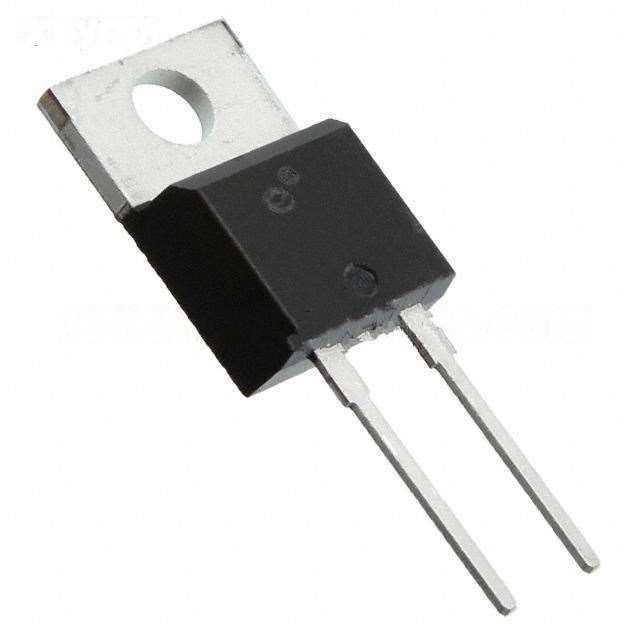

| Package / Case | TO-220-2 | |
| Supplier Device Package | TO-220 [K] | |
| Operating Temperature - Junction | -55°C ~ 175°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APT30DQ100KG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APT30DQ100KG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT30DQ100KG is new and unused, you can buy APT30DQ100KG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT30DQ100KG.
