| Manufacturer Part Number: | APT44F80B2 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 800V 47A T-MAX |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APT44F80B2 Datasheet |
| Internal Part Number | 898-APT44F80B2 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | POWER MOS 8™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 800V | |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) | |
| Rds On (Max) @ Id, Vgs | 210 mOhm @ 24A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | 305nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 9330pF @ 25V | |
| Power - Max | 1135W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

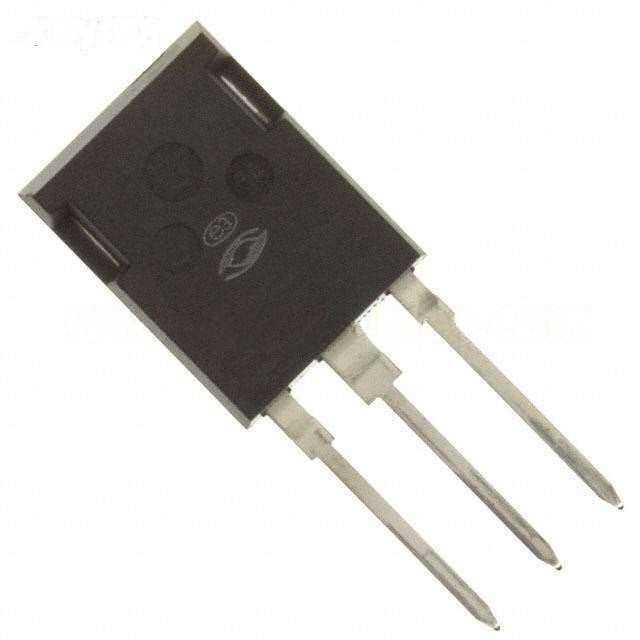

| Package / Case | TO-247-3 Variant | |
| Supplier Device Package | T-MAX™ [B2] | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APT44F80B2 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APT44F80B2 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT44F80B2 is new and unused, you can buy APT44F80B2 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT44F80B2.
