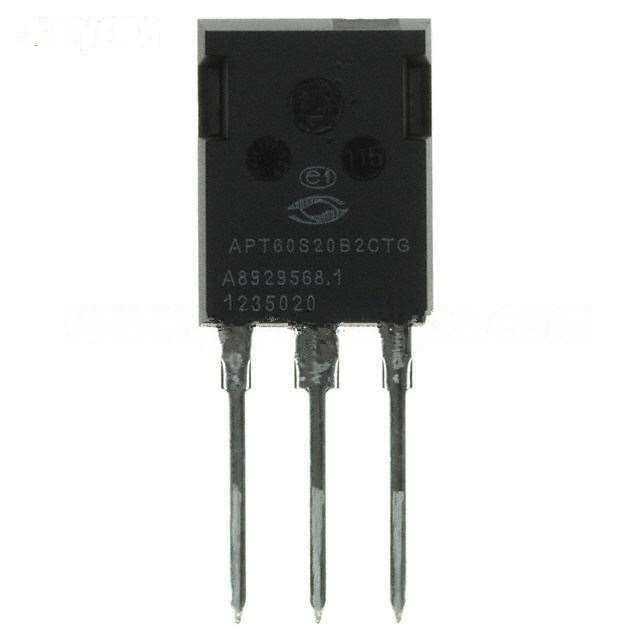

| Manufacturer Part Number: | APT60S20B2CTG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9529 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Schottky 200V 75A Through Hole, Radial TO-247-3 Variant |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APT60S20B2CTG Datasheet |
| Internal Part Number | 898-APT60S20B2CTG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Diode Overview | |
| Online Catalog | Schottky Diode Array | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 200V | |
| Current - Average Rectified (Io) (per Diode) | 75A | |
| Voltage - Forward (Vf) (Max) @ If | 900mV @ 60A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 55ns | |
| Current - Reverse Leakage @ Vr | 1mA @ 200V | |
| Mounting Type | Through Hole, Radial | |
| Package / Case | TO-247-3 Variant | |
| Supplier Device Package | T-MAX™ [B2] | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APT60S20B2CTG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APT60S20B2CTG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT60S20B2CTG is new and unused, you can buy APT60S20B2CTG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT60S20B2CTG.
