| Manufacturer Part Number: | APT70GR120JD60 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9026 Pieces |
| Unit Price: | Quote by Email |

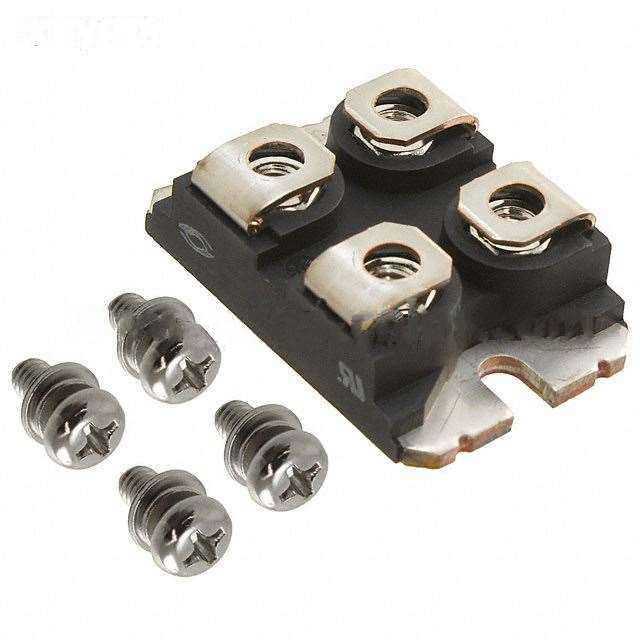

| Description: | IGBT Module NPT Single 1200V 112A 543W Chassis Mount SOT-227 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APT70GR120JD60 Datasheet |
| Internal Part Number | 898-APT70GR120JD60 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Ultra Fast NPT-IGBT® Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | NPT | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 112A | |
| Power - Max | 543W | |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 70A | |
| Current - Collector Cutoff (Max) | 1.1mA | |
| Input Capacitance (Cies) @ Vce | 7.26nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | SOT-227-4 | |
| Supplier Device Package | SOT-227 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APT70GR120JD60 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
