Manufacturer Part Number: | APTC60DSKM24T3G |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2N-CH 600V 95A SP3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTC60DSKM24T3G Datasheet |
Internal Part Number | 898-APTC60DSKM24T3G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | SP3F Plastic Frame Update 16/Jul/2015 | |
Online Catalog | N-Channel Super Junction FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | Microsemi Corporation | |
Series | CoolMOS™ | |
Packaging | Tray | |
Part Status | Active | |
FET Type | 2 N Channel (Dual Buck Chopper) | |
FET Feature | Super Junction | |
Drain to Source Voltage (Vdss) | 600V | |
Current - Continuous Drain (Id) @ 25°C | 95A | |
Rds On (Max) @ Id, Vgs | 24 mOhm @ 47.5A, 10V | |
Vgs(th) (Max) @ Id | 3.9V @ 5mA | |
Gate Charge (Qg) @ Vgs | 300nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 14400pF @ 25V | |
Power - Max | 462W | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

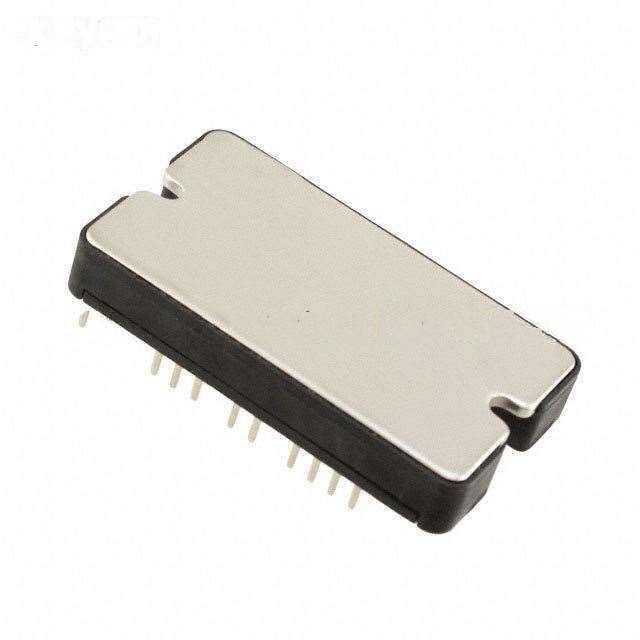

Package / Case | SP3 | |
Supplier Device Package | SP3 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTC60DSKM24T3G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTC60DSKM24T3G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTC60DSKM24T3G is new and unused, you can buy APTC60DSKM24T3G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTC60DSKM24T3G.
