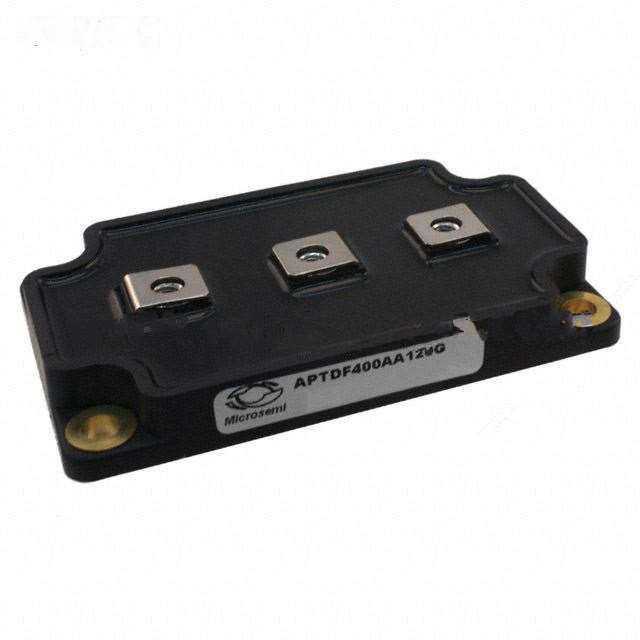

| Manufacturer Part Number: | APTDF400AA120G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Anode Standard 1200V (1.2kV) 470A Chassis Mount LP4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTDF400AA120G Datasheet |
| Internal Part Number | 898-APTDF400AA120G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Anode | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) | |
| Current - Average Rectified (Io) (per Diode) | 470A | |
| Voltage - Forward (Vf) (Max) @ If | 3V @ 400A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 385ns | |
| Current - Reverse Leakage @ Vr | 250µA @ 1200V | |
| Mounting Type | Chassis Mount | |
| Package / Case | LP4 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTDF400AA120G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTDF400AA120G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTDF400AA120G is new and unused, you can buy APTDF400AA120G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTDF400AA120G.
