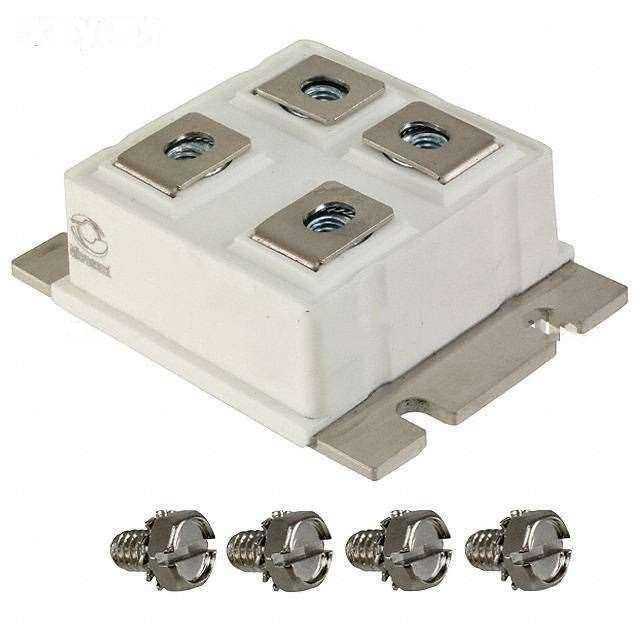

| Manufacturer Part Number: | APTDF430U100G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE MODULE 1KV 500A LP4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTDF430U100G Datasheet |
| Internal Part Number | 898-APTDF430U100G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Resin Layer 17/Oct/2012 | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) | |
| Current - Average Rectified (Io) | 500A | |
| Voltage - Forward (Vf) (Max) @ If | 2.3V @ 500A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 120ns | |
| Current - Reverse Leakage @ Vr | 2.5mA @ 1000V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Chassis Mount | |
| Package / Case | LP4 | |
| Supplier Device Package | LP4 | |
| Operating Temperature - Junction | * | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTDF430U100G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTDF430U100G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTDF430U100G is new and unused, you can buy APTDF430U100G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTDF430U100G.
