| Manufacturer Part Number: | APTGF300A120G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9043 Pieces |
| Unit Price: | Quote by Email |

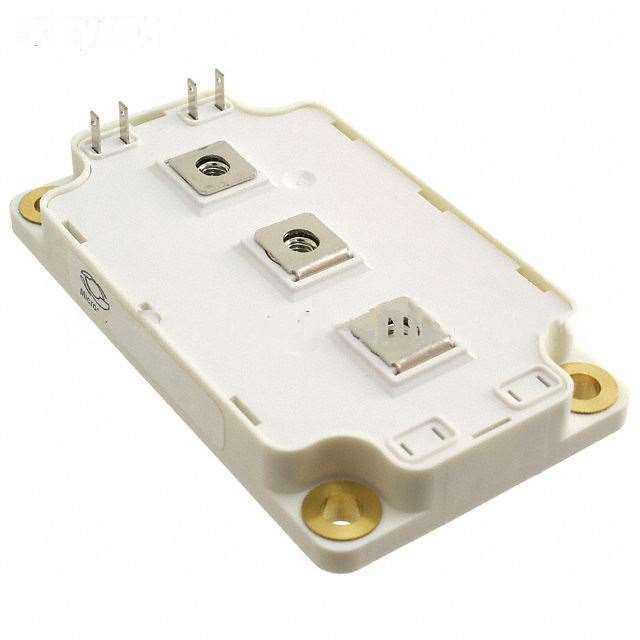

| Description: | IGBT Module NPT Half Bridge 1200V 400A 1780W Chassis Mount SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGF300A120G Datasheet |
| Internal Part Number | 898-APTGF300A120G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Part Status Change | Power Module Disc 23/Mar/2016 | |
| Online Catalog | APT Phase Leg Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Not For New Designs | |
| IGBT Type | NPT | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 400A | |
| Power - Max | 1780W | |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 300A | |
| Current - Collector Cutoff (Max) | 500µA | |
| Input Capacitance (Cies) @ Vce | 21nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGF300A120G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGF300A120G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGF300A120G is new and unused, you can buy APTGF300A120G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGF300A120G.
