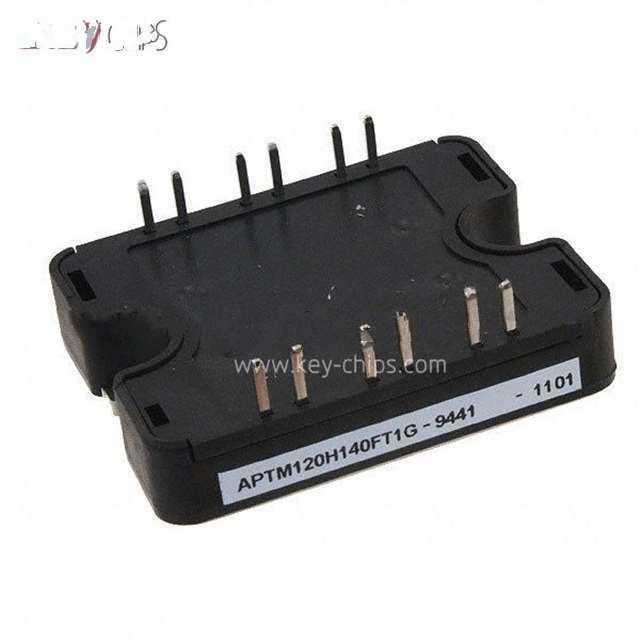

| Manufacturer Part Number: | APTM120H140FT1G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 4N-CH 1200V 8A SP1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTM120H140FT1G Datasheet |
| Internal Part Number | 898-APTM120H140FT1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | 4 N-Channel (H-Bridge) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1200V (1.2kV) | |
| Current - Continuous Drain (Id) @ 25°C | 8A | |
| Rds On (Max) @ Id, Vgs | 1.68 Ohm @ 7A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 145nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 3812pF @ 25V | |
| Power - Max | 208W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP1 | |
| Supplier Device Package | SP1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTM120H140FT1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTM120H140FT1G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTM120H140FT1G is new and unused, you can buy APTM120H140FT1G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTM120H140FT1G.
