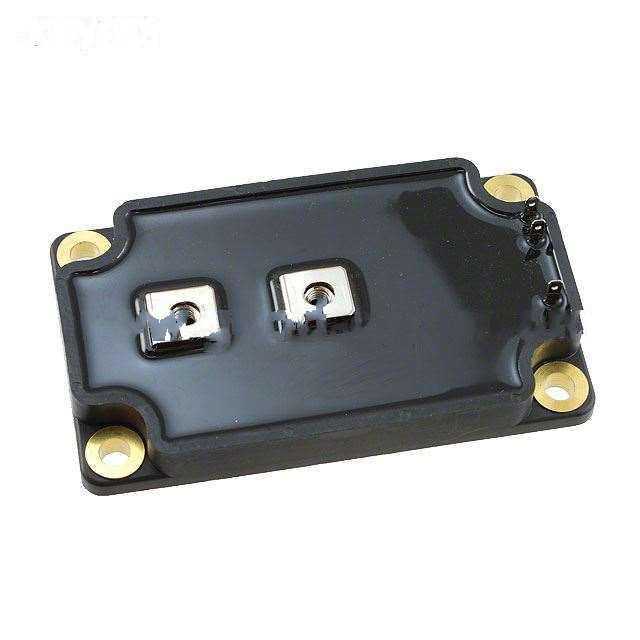

| Manufacturer Part Number: | APTM50UM09FAG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V 497A SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTM50UM09FAG Datasheet |
| Internal Part Number | 898-APTM50UM09FAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 497A | |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 248.5A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 30mA | |
| Gate Charge (Qg) @ Vgs | 1200nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 63300pF @ 25V | |
| Power - Max | 5000W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTM50UM09FAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTM50UM09FAG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTM50UM09FAG is new and unused, you can buy APTM50UM09FAG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTM50UM09FAG.
