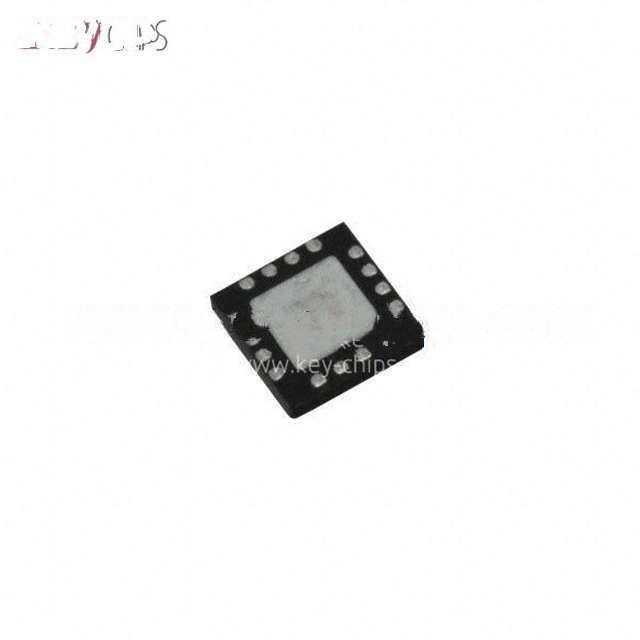

Manufacturer Part Number: | AS1336A-BQFT |
---|---|
Manufacturer: | ams |
Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Boost Switching Regulator IC Positive Adjustable 1.8V 2 Output 500mA (Switch) 16-UFQFN Exposed Pad |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1336A-BQFT Datasheet |
Internal Part Number | 898-AS1336A-BQFT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | AS1332x-AS13986x Devices 14/Nov/2014 | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
Manufacturer | ams | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Function | Step-Up | |
Output Configuration | Positive | |
Topology | Boost | |
Output Type | Adjustable | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 0.8V | |
Voltage - Input (Max) | 3.6V | |
Voltage - Output (Min/Fixed) | 1.8V | |
Voltage - Output (Max) | 3.6V | |
Current - Output | 500mA (Switch) | |
Frequency - Switching | 1.2MHz | |
Synchronous Rectifier | Yes | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |
Package / Case | 16-UFQFN Exposed Pad | |
Supplier Device Package | 16-TQFN (3x3) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1336A-BQFT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1336A-BQFT is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1336A-BQFT is new and unused, you can buy AS1336A-BQFT ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1336A-BQFT.
