| Manufacturer Part Number: | ATMEGA48A-CCUR |
|---|---|
| Manufacturer: | Atmel |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AVR AVR® ATmega Microcontroller IC 8-Bit 20MHz 4KB (2K x 16) FLASH 32-UFBGA (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ATMEGA48A-CCUR Datasheet |
| Internal Part Number | 898-ATMEGA48A-CCUR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MCU Product Line Introduction megaAVR Introduction Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
| Video File | Introducing Atmel Studio 7 | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Tape and Reel Label Update 10/Feb/2015 | |
| Online Catalog | AVR® ATmega 4KB Flash | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Atmel | |
| Series | AVR® ATmega | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | AVR | |
| Core Size | 8-Bit | |
| Speed | 20MHz | |
| Connectivity | I²C, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Number of I/O | 23 | |
| Program Memory Size | 4KB (2K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | 256 x 8 | |
| RAM Size | 512 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 5.5 V | |
| Data Converters | A/D 8x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

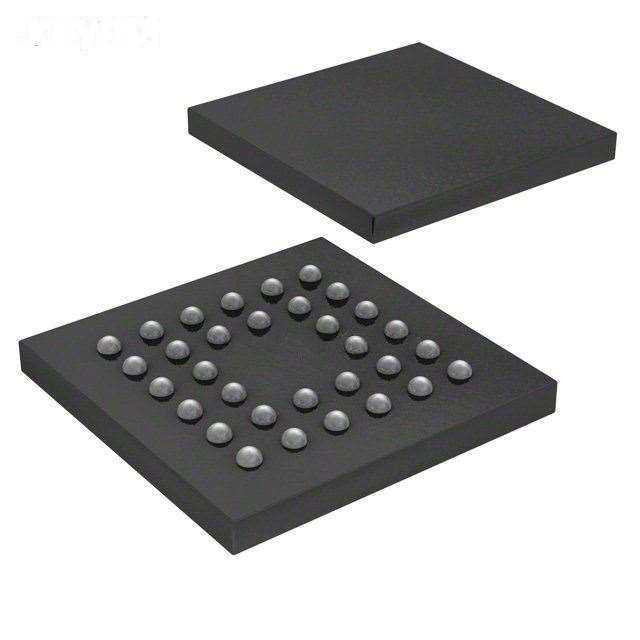

| Package / Case | 32-UFBGA | |
| Supplier Device Package | 32-UFBGA (4x4) | |
| Standard Package | 6,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ATMEGA48A-CCUR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ATMEGA48A-CCUR is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATMEGA48A-CCUR is new and unused, you can buy ATMEGA48A-CCUR Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATMEGA48A-CCUR.
