Manufacturer Part Number: | ATSAM4E8EA-CU |
---|---|
Manufacturer: | Atmel |
Product Category: | Embedded - Microcontrollers |
Available Quantity: | 9133 Pieces |
Unit Price: | Quote by Email |
Description: | ARM® Cortex®-M4 SAM4E Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 144-LFBGA (10x10) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ATSAM4E8EA-CU Datasheet |
Internal Part Number | 898-ATSAM4E8EA-CU | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Software Framework (ASF) Example of Use Studio Introduction to Software Framework (ASF) Studio Development Environment Overview Part 1 | |
Video File | Introducing Atmel Studio 7 Atmel START Overview | |
Design Resources | Development Tool Selector | |
PCN Design/Specification | Errata 06/Jun/2016 | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontrollers | |
Manufacturer | Atmel | |
Series | SAM4E | |
Packaging | Tray | |
Part Status | Active | |
Core Processor | ARM® Cortex®-M4 | |
Core Size | 32-Bit | |
Speed | 120MHz | |
Connectivity | CAN, EBI/EMI, Ethernet, IrDA, SD, SPI, UART/USART, USB | |
Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT | |
Number of I/O | 117 | |
Program Memory Size | 512KB (512K x 8) | |
Program Memory Type | FLASH | |
EEPROM Size | - | |
RAM Size | 128K x 8 | |
Voltage - Supply (Vcc/Vdd) | 1.62 V ~ 3.6 V | |
Data Converters | A/D 16x12b, D/A 2x12b | |
Oscillator Type | Internal | |
Operating Temperature | -40°C ~ 85°C (TA) | |

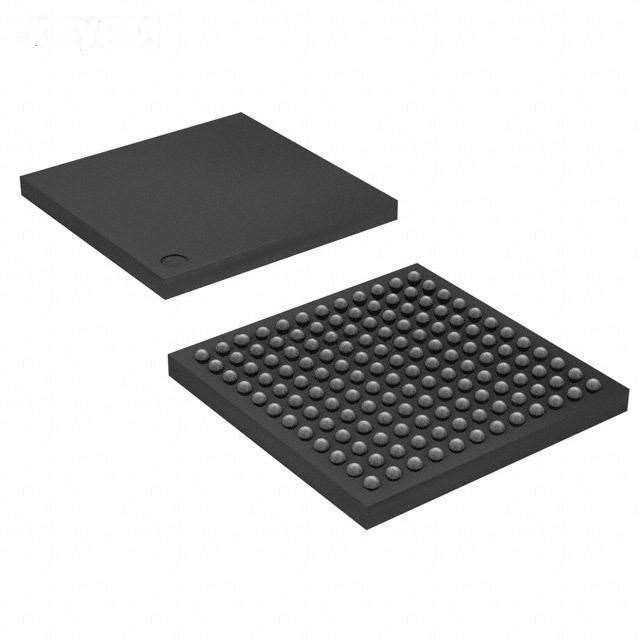

Package / Case | 144-LFBGA | |
Supplier Device Package | 144-LFBGA (10x10) | |
Standard Package | 184 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ATSAM4E8EA-CU | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ATSAM4E8EA-CU is in stock for immediate shipping now. We are the distributor of Atmel all series components. The condition of ATSAM4E8EA-CU is new and unused, you can buy ATSAM4E8EA-CU Atmel with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ATSAM4E8EA-CU.
