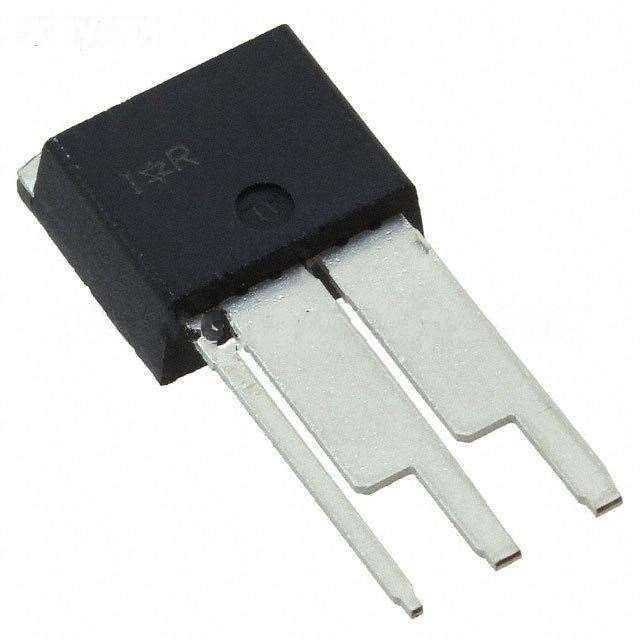

| Manufacturer Part Number: | AUIRF1324WL |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 24V 240A TO-262 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AUIRF1324WL Datasheet |
| Internal Part Number | 898-AUIRF1324WL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) Discrete Power MOSFETs 40V and Below | |
| PCN Design/Specification | Copper 04/Mar/2016 Copper 04/Mar/2016 | |
| PCN Assembly/Origin | AUIRFxx Series Wafer Process 29/Jul/2013 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 24V | |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) | |
| Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 195A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 180nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7630pF @ 19V | |
| Power - Max | 300W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | TO-262-3 Wide Leads | |
| Supplier Device Package | TO-262-3 Wide | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AUIRF1324WL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AUIRF1324WL is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of AUIRF1324WL is new and unused, you can buy AUIRF1324WL Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AUIRF1324WL.
