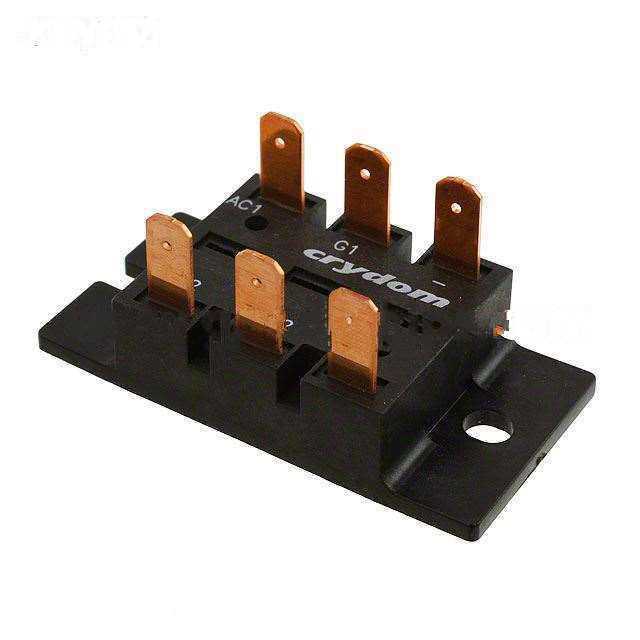

Manufacturer Part Number: | B512-2T |
---|---|
Manufacturer: | Crydom Co. |
Product Category: | Thyristors - SCRs - Modules |
Available Quantity: | 9103 Pieces |
Unit Price: | Quote by Email |
Description: | SCR Module 600V 25A (DC) Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | B512-2T Datasheet |
Internal Part Number | 898-B512-2T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | SCR Module Selection Guide Declaration of Conformity | |
Product Training Modules | Solid State Relays | |
3D Model | B-2T Series, Circuit 1,2,3 & 5.sat B-2T Series, Circuit 1,2,3 & 5.dwg B-2T Series, Circuit 1,2,3 & 5.stp | |
Online Catalog | B-2T, B-2 Series | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs - Modules | |
Manufacturer | Crydom Co. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) | |
Number of SCRs, Diodes | 2 SCRs, 2 Diodes | |
Voltage - Off State | 600V | |
Current - Gate Trigger (Igt) (Max) | 60mA | |
Current - On State (It (AV)) (Max) | - | |
Current - On State (It (RMS)) (Max) | 25A (DC) | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A @ 60Hz | |
Current - Hold (Ih) (Max) | - | |
Mounting Type | Chassis Mount | |
Package / Case | Module | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | B512-2T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
B512-2T is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of B512-2T is new and unused, you can buy B512-2T Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for B512-2T.
