| Manufacturer Part Number: | BAS70-05T-7-F |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 13585 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 1 Pair Common Cathode Schottky 70V 70mA (DC) Surface Mount SOT-523 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BAS70-05T-7-F Datasheet |
| Internal Part Number | 898-BAS70-05T-7-F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| PCN Design/Specification | Green Encapsulate Change 09/July/2007 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Diode Configuration | 1 Pair Common Cathode | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 70V | |
| Current - Average Rectified (Io) (per Diode) | 70mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 15mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 5ns | |
| Current - Reverse Leakage @ Vr | 100nA @ 50V | |
| Mounting Type | Surface Mount | |

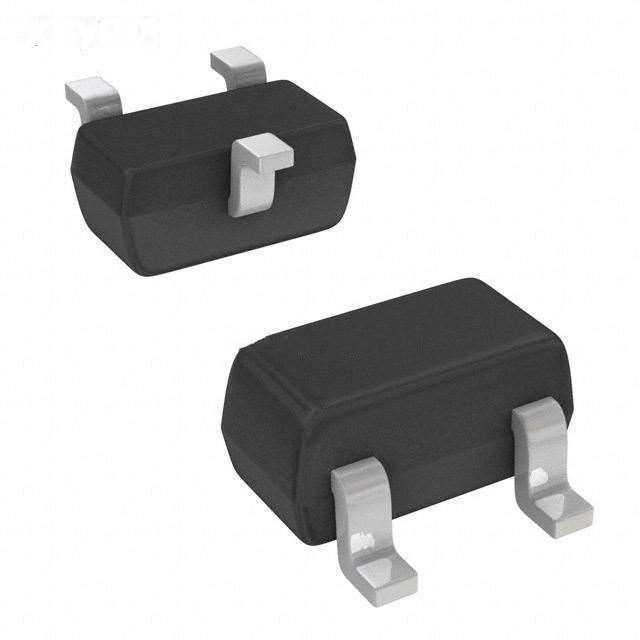

| Package / Case | SOT-523 | |
| Supplier Device Package | SOT-523 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BAS70-05T-7-F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BAS70-05T-7-F is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of BAS70-05T-7-F is new and unused, you can buy BAS70-05T-7-F Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAS70-05T-7-F.
