Manufacturer Part Number: | BAT30LFILM |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Schottky 30V 300mA (DC) Surface Mount SOD-923 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BAT30LFILM Datasheet |
Internal Part Number | 898-BAT30LFILM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | STMicroelectronics | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 30V | |
Current - Average Rectified (Io) | 300mA (DC) | |
Voltage - Forward (Vf) (Max) @ If | 530mV @ 300mA | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 5µA @ 30V | |
Capacitance @ Vr, F | 22pF @ 0V, 1MHz | |
Mounting Type | Surface Mount | |

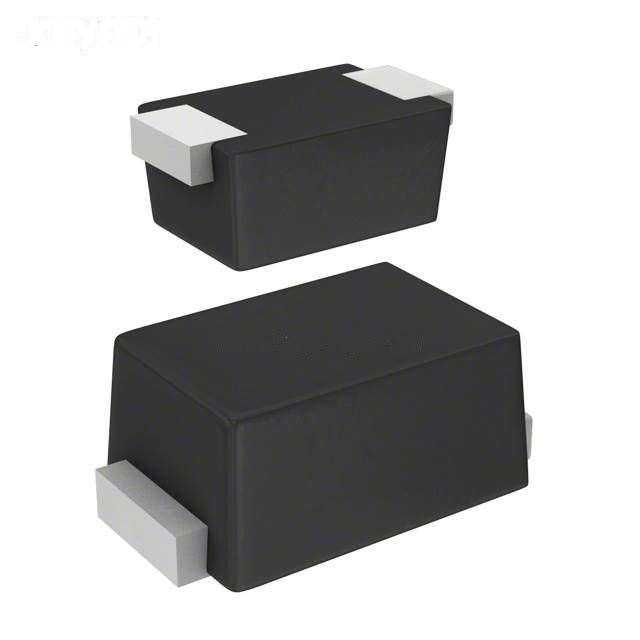

Package / Case | SOD-923 | |
Supplier Device Package | SOD-923 | |
Operating Temperature - Junction | 150°C (Max) | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BAT30LFILM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BAT30LFILM is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of BAT30LFILM is new and unused, you can buy BAT30LFILM STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAT30LFILM.
