| Manufacturer Part Number: | BAT85,133 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 30V 200MA DO34 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BAT85,133 Datasheet |
| Internal Part Number | 898-BAT85,133 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Other | SOD27,66,68,80 Package 29/Jul/2013 | |
| Online Catalog | Schottky Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 200mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 800mV @ 100mA | |
| Speed | Small Signal =< 200mA (Io), Any Speed | |
| Reverse Recovery Time (trr) | 4ns | |
| Current - Reverse Leakage @ Vr | 2µA @ 25V | |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz | |
| Mounting Type | Through Hole | |

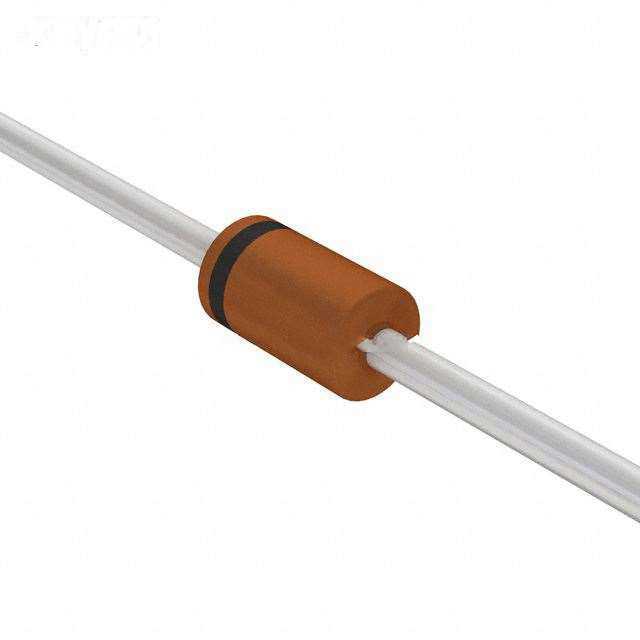

| Package / Case | DO-204AG, DO-34, Axial | |
| Supplier Device Package | DO-34 | |
| Operating Temperature - Junction | 125°C (Max) | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BAT85,133 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BAT85,133 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of BAT85,133 is new and unused, you can buy BAT85,133 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BAT85,133.
