| Manufacturer Part Number: | BP5801 |
|---|---|
| Manufacturer: | Rohm Semiconductor |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Bipolar Analog, PWM 9-SIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | BP5801 Datasheet |
| Internal Part Number | 898-BP5801 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Rohm Semiconductor | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Discontinued | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Low Side | |
| Interface | Analog, PWM | |
| Technology | Bipolar | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 400mA | |
| Voltage - Supply | 12 V ~ 15 V | |
| Voltage - Load | 11 V ~ 13 V | |
| Operating Temperature | -10°C ~ 60°C (TA) | |
| Mounting Type | Through Hole | |

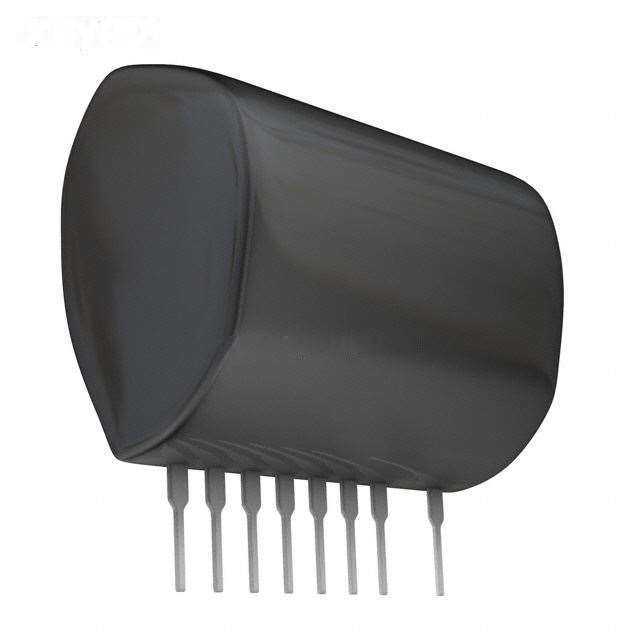

| Package / Case | 9-SIP, 8 Leads | |
| Supplier Device Package | 9-SIP | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | BP5801 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
BP5801 is in stock for immediate shipping now. We are the distributor of Rohm Semiconductor all series components. The condition of BP5801 is new and unused, you can buy BP5801 Rohm Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BP5801.
