Manufacturer Part Number: | BTS441RG |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | IC HIGH SIDE PWR SWITCH D2PAK-5 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | BTS441RG Datasheet |
Internal Part Number | 898-BTS441RG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | General Purpose | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | Infineon Technologies | |
Series | PROFET® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | N-Channel | |
Interface | On/Off | |
Voltage - Load | 4.75 V ~ 43 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 17A | |
Rds On (Typ) | 15 mOhm | |
Input Type | Non-Inverting | |
Features | Status Flag | |
Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | |
Operating Temperature | -40°C ~ 150°C (TJ) | |

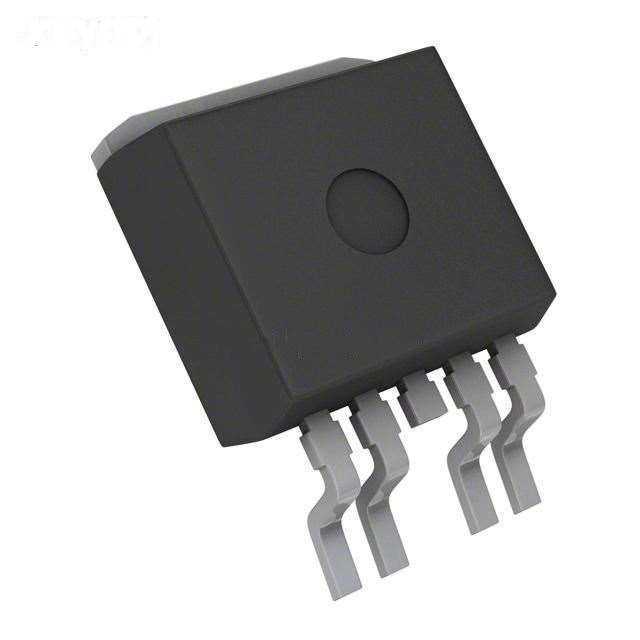

Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | |
Supplier Device Package | TO-263-5 | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | BTS441RG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
BTS441RG is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of BTS441RG is new and unused, you can buy BTS441RG Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for BTS441RG.
