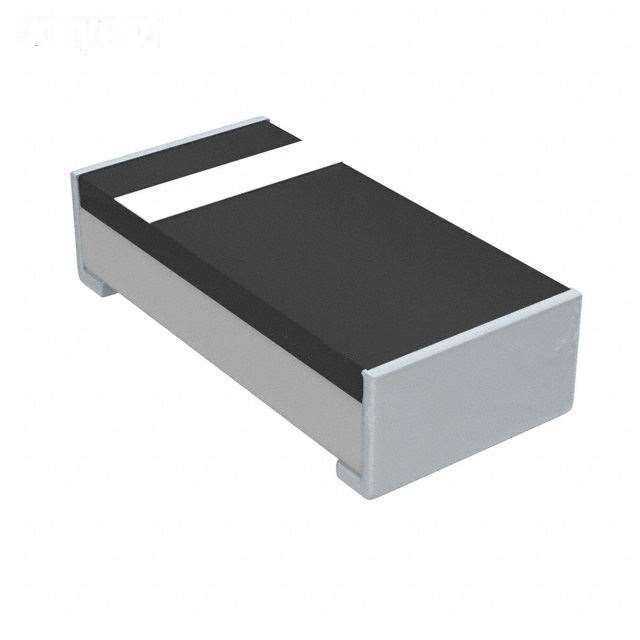

Manufacturer Part Number: | CD1206-S01575 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 69010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE GEN PURP 100V 150MA 1206 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CD1206-S01575 Datasheet |
Internal Part Number | 898-CD1206-S01575 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | CD1206-S01575.stp | |
PCN Design/Specification | CD0603-S01575,CD1206-S01575 12/Jan/2015 | |
Online Catalog | Standard Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Bourns Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 100V | |
Current - Average Rectified (Io) | 150mA | |
Voltage - Forward (Vf) (Max) @ If | 1V @ 50mA | |
Speed | Small Signal =< 200mA (Io), Any Speed | |
Reverse Recovery Time (trr) | 4ns | |
Current - Reverse Leakage @ Vr | 2.5µA @ 100V | |
Capacitance @ Vr, F | 3pF @ 0V, 100MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1206 (3216 Metric) | |
Supplier Device Package | 1206 | |
Operating Temperature - Junction | -55°C ~ 125°C | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CD1206-S01575 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CD1206-S01575 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of CD1206-S01575 is new and unused, you can buy CD1206-S01575 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CD1206-S01575.
