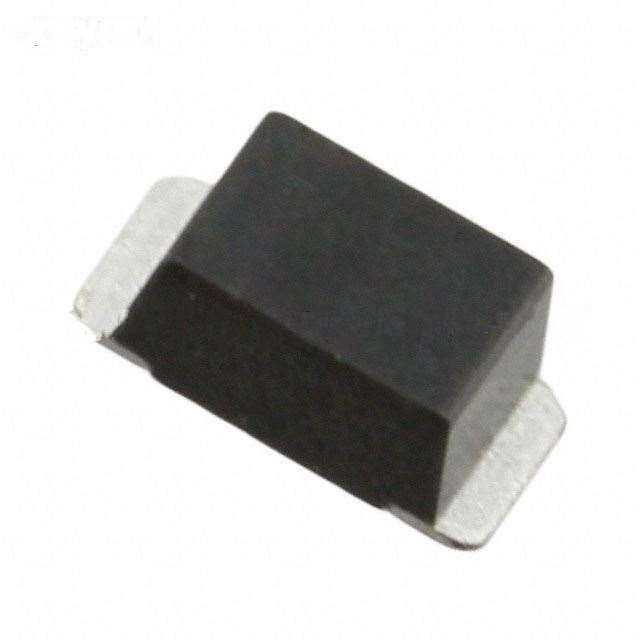

Manufacturer Part Number: | CDBM140-G |
---|---|
Manufacturer: | Comchip Technology |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 66510 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 40V 1A MINISMA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDBM140-G Datasheet |
Internal Part Number | 898-CDBM140-G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Flat Chip Diodes | |
RoHS Information | RoHS Declaration | |
PCN Packaging | Label D/C Chg24/Mar/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Comchip Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 40V | |
Current - Average Rectified (Io) | 1A | |
Voltage - Forward (Vf) (Max) @ If | 500mV @ 1A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 500µA @ 40V | |
Capacitance @ Vr, F | 120pF @ 4V, 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | SOD-123T | |
Supplier Device Package | Mini SMA/SOD-123 | |
Operating Temperature - Junction | -50°C ~ 125°C | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDBM140-G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDBM140-G is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBM140-G is new and unused, you can buy CDBM140-G Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDBM140-G.
