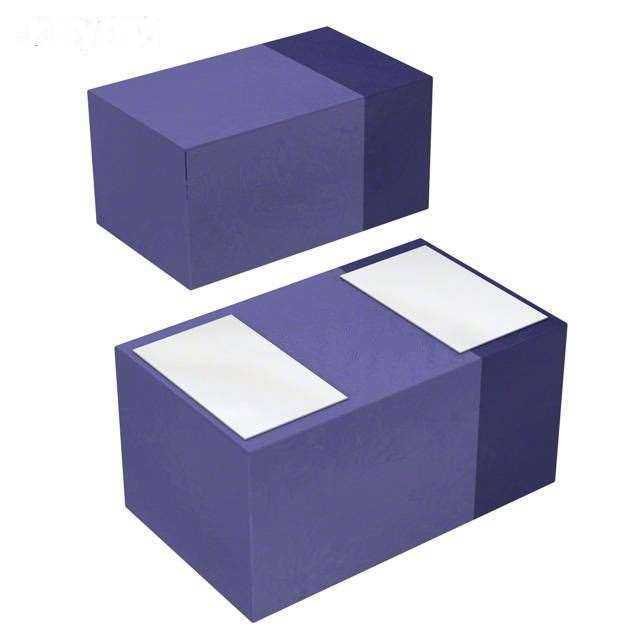

CDBQR0140L

CDBQR0140L
Manufacturer Part Number:CDBQR0140L
Manufacturer:
Product Category:Diodes - Rectifiers - Single
Available Quantity:21283 Pieces
Unit Price:Quote by Email
Description:DIODE SCHOTTKY 40V 100MA 0402
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: CDBQR0140L Datasheet
CDBQR0140L´s Parameters
Internal Part Number898-CDBQR0140L
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesFlat Chip Diodes
RoHS InformationRoHS Declaration
PCN PackagingLabel D/C Chg24/Mar/2016
EDA / CAD Models Download from Accelerated Designs
Online Catalog Schottky Diode
CategoryDiscrete Semiconductor Products
FamilyDiodes - Rectifiers - Single
ManufacturerComchip Technology
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)40V
Current - Average Rectified (Io)100mA
Voltage - Forward (Vf) (Max) @ If550mV @ 100mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr30µA @ 10V
Capacitance @ Vr, F6pF @ 10V, 1MHz
Mounting TypeSurface Mount
Package / Case0402 (1005 Metric)
Supplier Device Package0402/SOD-923F
Operating Temperature - Junction125°C (Max)
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartCDBQR0140L
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

CDBQR0140L is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBQR0140L is new and unused, you can buy CDBQR0140L Comchip Technology with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for CDBQR0140L.
