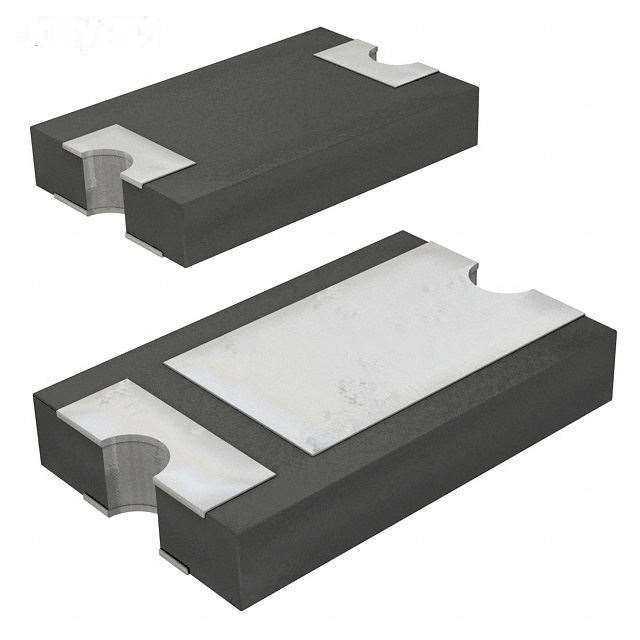

Manufacturer Part Number: | CDBZ5T1045-HF |
---|---|
Manufacturer: | Comchip Technology |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 11870 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 45V 10A SMC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CDBZ5T1045-HF Datasheet |
Internal Part Number | 898-CDBZ5T1045-HF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Declaration CDBZ HF Series Material Declaration | |
Featured Product | CDBZ5T1045-HF Schottky Barrier Rectifier | |
PCN Packaging | Label D/C Chg24/Mar/2016 | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Comchip Technology | |
Series | - | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 45V | |
Current - Average Rectified (Io) | 10A | |
Voltage - Forward (Vf) (Max) @ If | 550mV @ 10A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 100µA @ 45V | |
Capacitance @ Vr, F | - | |
Mounting Type | Surface Mount | |
Package / Case | Z5-T | |
Supplier Device Package | SMC (Z5-T) | |
Operating Temperature - Junction | -55°C ~ 150°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CDBZ5T1045-HF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CDBZ5T1045-HF is in stock for immediate shipping now. We are the distributor of Comchip Technology all series components. The condition of CDBZ5T1045-HF is new and unused, you can buy CDBZ5T1045-HF Comchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CDBZ5T1045-HF.
