Manufacturer Part Number: | CMDZ5248B TR |
---|---|
Manufacturer: | Central Semiconductor Corp |
Product Category: | Diodes - Zener - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | Zener Diode 18V 250mW ±5% Surface Mount SOD-323 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMDZ5248B TR Datasheet |
Internal Part Number | 898-CMDZ5248B TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Declaration of Compliance | |
Online Catalog | CMDZ Zener Diodes | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Zener - Single | |
Manufacturer | Central Semiconductor Corp | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Voltage - Zener (Nom) (Vz) | 18V | |
Tolerance | ±5% | |
Power - Max | 250mW | |
Impedance (Max) (Zzt) | 21 Ohm | |
Current - Reverse Leakage @ Vr | 100nA @ 14V | |
Voltage - Forward (Vf) (Max) @ If | 900mV @ 10mA | |
Operating Temperature | -65°C ~ 150°C | |
Mounting Type | Surface Mount | |

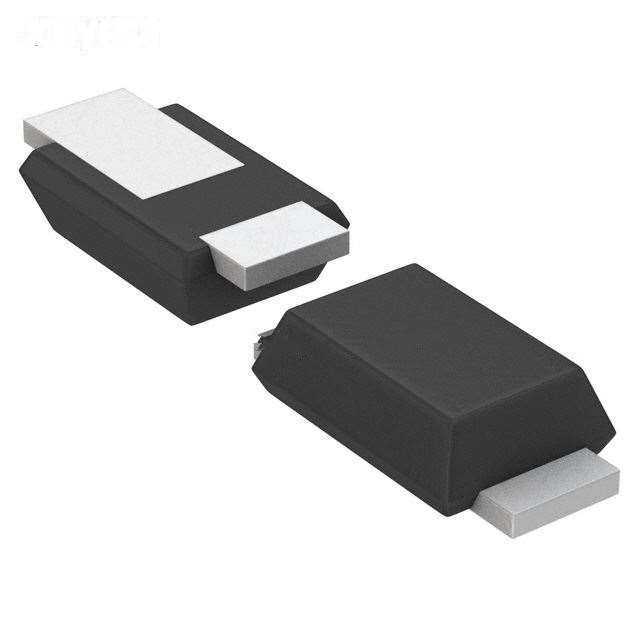

Package / Case | SC-76, SOD-323 | |
Supplier Device Package | SOD-323 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMDZ5248B TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMDZ5248B TR is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CMDZ5248B TR is new and unused, you can buy CMDZ5248B TR Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMDZ5248B TR.
