Manufacturer Part Number: | CMMSH1-40G TR |
---|---|
Manufacturer: | Central Semiconductor Corp |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | DIODE SCHOTTKY 40V 1A SOD123F |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | CMMSH1-40G TR Datasheet |
Internal Part Number | 898-CMMSH1-40G TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | RoHS Declaration of Compliance | |
Online Catalog | Schottky Diode | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Central Semiconductor Corp | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 40V | |
Current - Average Rectified (Io) | 1A | |
Voltage - Forward (Vf) (Max) @ If | 550mV @ 1A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 500µA @ 40V | |
Capacitance @ Vr, F | 60pF @ 4V, 1MHz | |
Mounting Type | Surface Mount | |

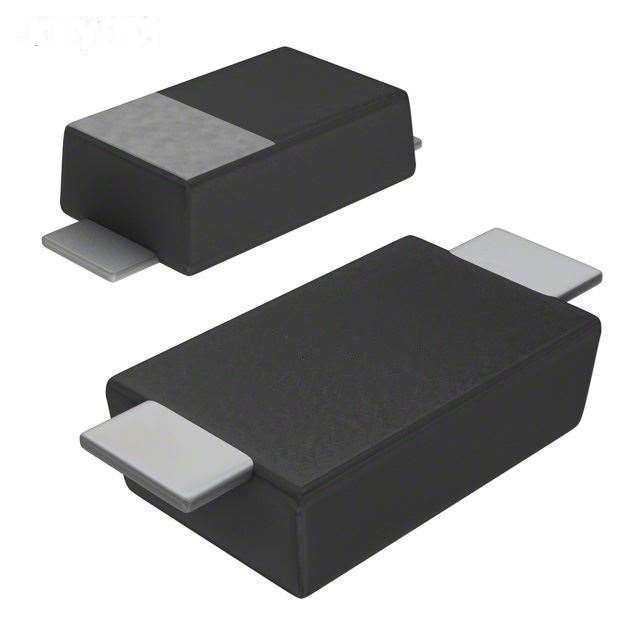

Package / Case | SOD-123F | |
Supplier Device Package | SOD-123F | |
Operating Temperature - Junction | -65°C ~ 125°C | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | CMMSH1-40G TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
CMMSH1-40G TR is in stock for immediate shipping now. We are the distributor of Central Semiconductor Corp all series components. The condition of CMMSH1-40G TR is new and unused, you can buy CMMSH1-40G TR Central Semiconductor Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for CMMSH1-40G TR.
